ASRock ConRoeXFire-eSATA2 (Intel 945P) Review Intro 2/4
Bluetooth 12 Jul 2006

Pricing of ASRock ConroeXfire-eSATA2 >>>

Gallery

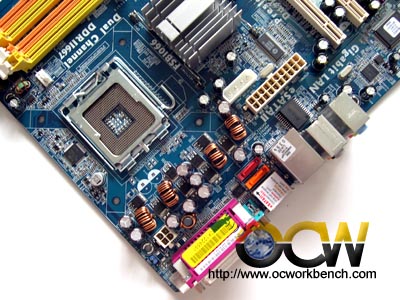

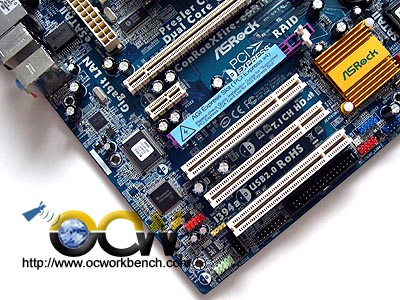

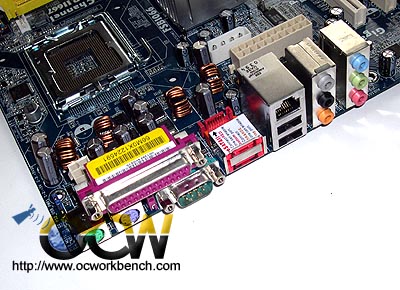

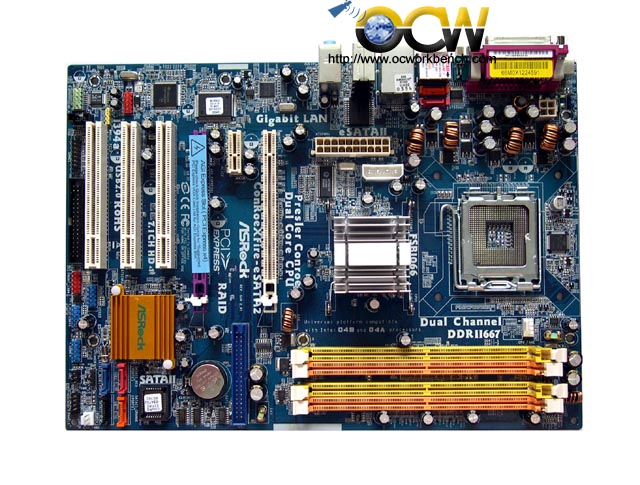

The board comes with 3 PCI, 1 PCIe x 4, 1 PCIe x16 slot and 1 PCIe x1. At the left hand corner are the connectors for 1394, HDMI_SPDIF header, TI chip, Realtek GbE LAN. At the centre is the 20pin power connector with a a 4pin connector which you might want to use if you are running CrossFire (feeding more power in). On the top you can see two eSATA sockets which is meant for connecting to the SATAII ports on the left bottom corner for eSATAII support (at the rear panel). On the right is the 4 pin power plug.

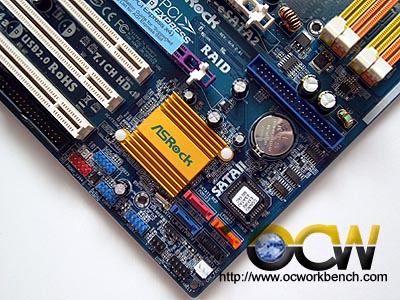

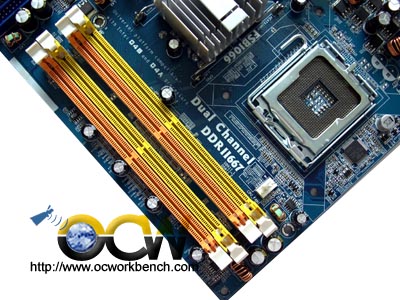

At the bottom left corner you will see the blue USB connectors for external brakcet use and a front 1394 connector in red. There are 4 SATAII ports in RED, ORANGE, BLUE and BLACK. The BIOS chip is next to it. The ICH7R is just above the conectors. Nearer to the centre is the IDE connector and to its right is 4 DDR2 DIMM slots supporrting up to 4 pc of DDRII667.

Next >>>
