Gallery

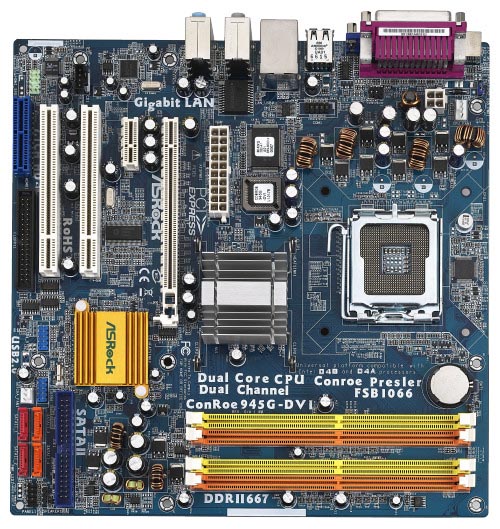

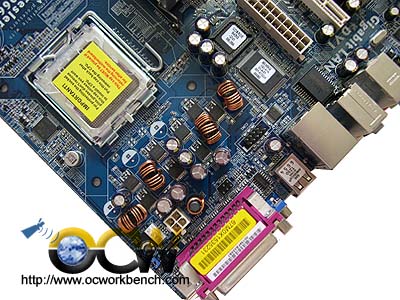

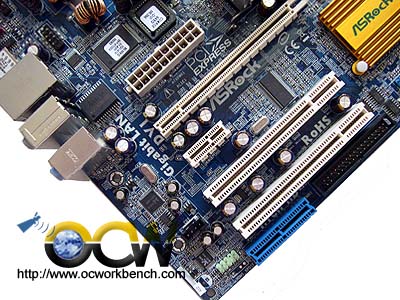

The board comes with 1 HDMR, 2 PCI, 1 PCIe x 1 and 1 PCIe x16 slot. On the top left corner of the board, you will see the Realtek HD audio Codec and GbE controller chip. At the centre is the 20pin power connector.

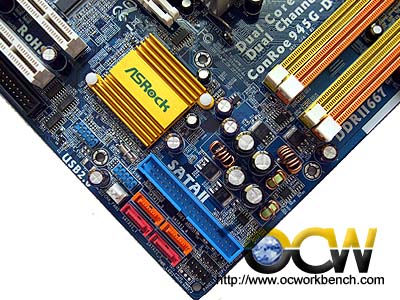

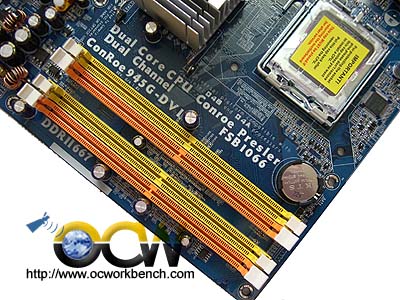

At the bottom left corner you will see the 4 SATA II connectors controlled by the ICH7 south bridge. Just above it are external connectors for USB brackets. On the right are 4 DDR2 DIMM slots supporrting up to 4 pc of DDRII667.

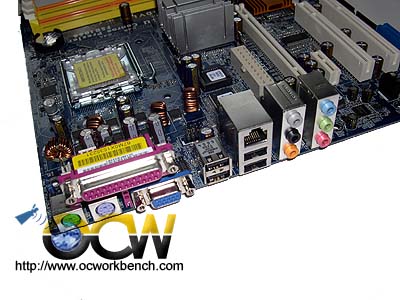

On the back panel, you will find the PS/2 Keyboard and Mouse, LPT1 port, VGA out, 4 USB, GbE and 7.1 ch audio ports. Notice that the BIOS is located at the right hand corner of the mainboard.
