ASrock AM2NF4G-SATA2 Intro 2/5
Bluetooth 15 May 2006

Gallery

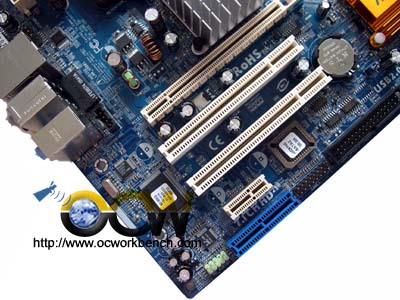

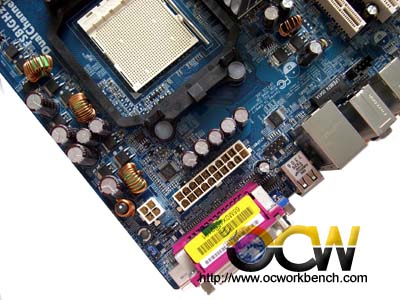

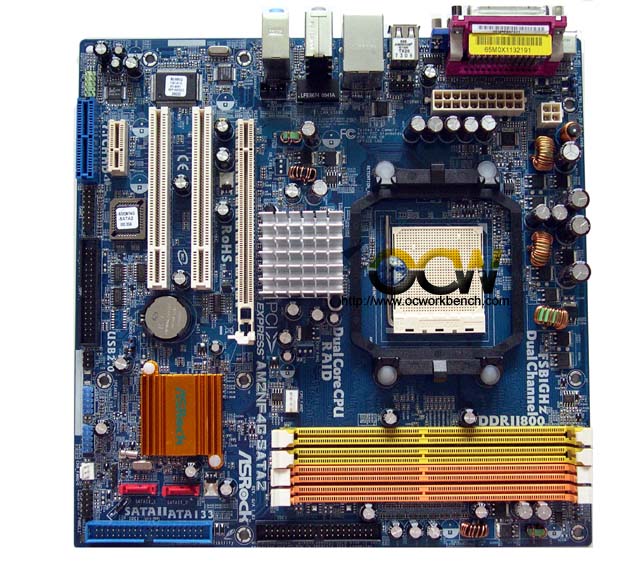

The board comes with 1 HRMR slot (blue), 1 PCIx1, 2 x PCI and 1 x PCIex16. Behind the slots are I/O controller chip, audio codec and at the centre you will see the Realtek Fast ethernet controller. On the left is the ALC 888 7.1 audio codec. On the right are the power connectors. At the centre of the board is the NF 6100 North bridge.

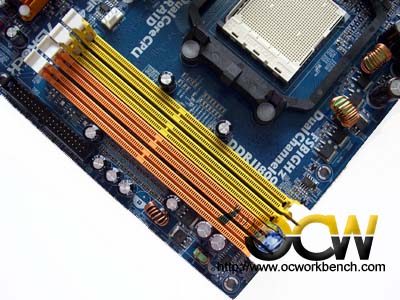

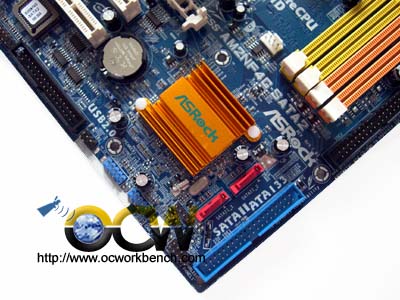

Further down to the left, you will see the 2 SATA II ports, 2 IDE channels supported by the 410 MCP south bridge. It supports the 2 SATAII ports and 2 IDE channels. On the right are 4 channels of DDR2 slots supporting DDR2-533/667/800 modules. A total of 8GB can be installed. Both chipsets are mounted with a passive heatsink.

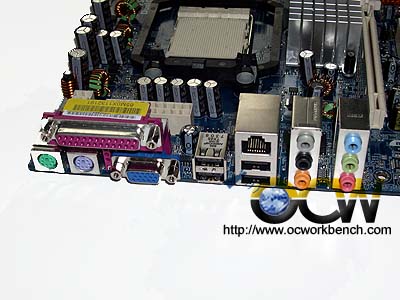

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, 1 Fast Ethernet and 7.1 ch audio ports and VGA out port.
