ASrock AM2 CPU Board Intro 2/4
Bluetooth 20 May 2006

Pricing from
various
vendors
>>>

Gallery 1

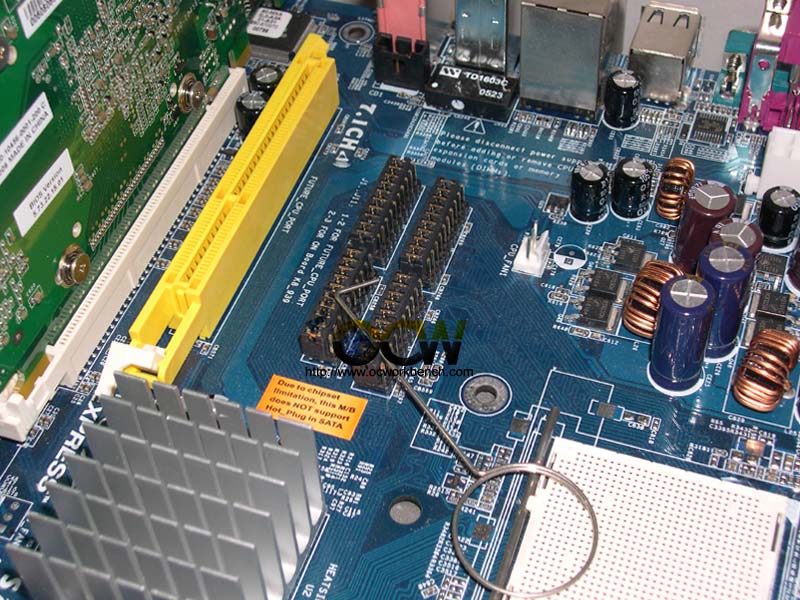

1. ASrock 939Dual-SATA2 mainboard. The jumpers have to be set to position 1-2. There are 2 more jumpers that needs to be re-jumpered on the left of the graphics card. You can use the hook provided with the mainboard to extract the jumpers.

2. Turn the board upside down and remove the Socket 939 retention unit so that the heatsink on the AM2 CPU board will not get blocked.

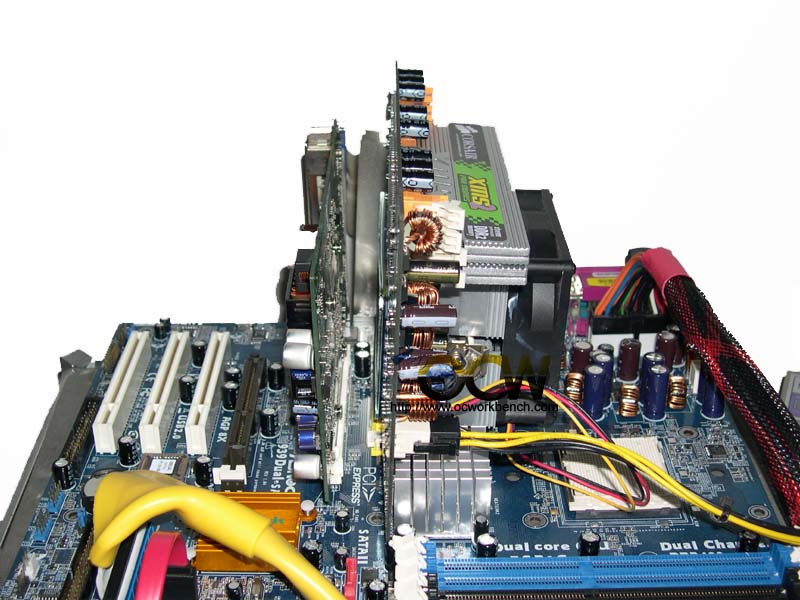

3. Use a AM2 HS/Cooler and clip it onto the AM2 retention unit of the CPU Board. Install the RAM and plug in the 4 pin +12v line to the CPU board. The 20 pin connector should be connected to the 939Dual-SATA2.

* Most of the Socket 939 heatsink/fan will fit into the AM2 retention unit. The only problem that one might face is the clip. Clips with 3 holes will work as it only requires the centre hole to clip the heatsink to the retention unit.
