ASRock ALIVESATA2-GLAN AM2 board (VIA K8T890CF) Review Intro 1/5
Bluetooth 25 Jul 2006
|
Pricing
from
various
vendors
>>> |
|
ASRock ALIVESATA2-GLAN
A few weeks ago, we
reviewed the AM2V890-VSTA, a AM2 board based on the VIA K8T890CF chipset pairing
up with South bridge the VIA 8237A. Today, we take a look at another mainboard
based on the same chipset - ALIVESATA2-GLAN.
ALIVESATA2-GLAN is based on
VIA K8T890CF + 8237A southbridge. This board supports socket AM2 for AMD
Athlon™ 64FX / 64X2 / 64 and Sempron Processors and it is AMD LIVE! Ready.
Similar to the AM2V890 board, it supports untied overclocking options allowing
one to set high clk speed with voltage options.
In terms of features, the
board supports GbE, HDA 7.1,2 x Serial ATA 1.5 Gb/s connectors by VIA®
VT8237A, support RAID (RAID 0, RAID 1, JBOD) and "Hot Plug" functions. 2 x
SATAII 3.0 Gb/s connectors by JMicron® JMB 363 (PCIE x1 interface),
support RAID (RAID 0, RAID 1, JBOD), NCQ, AHCI and "Hot Plug" functions. There
is also a HDMI_SPDIF header for connecting to a HDMI ready video card for
routing audio to a HDTV set.
Specs
|
CPU |
- Socket AM2 for AMD Athlon™ 64FX / 64X2 / 64 and
Sempron Processors
- AMD LIVE!™ Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology |
|
Chipset |
- Northbridge: VIA® K8T890 CF
- Southbridge: VIA® VT8237A |
|
Hybrid Booster |
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.) |
|
Memory |
- Dual Channel DDRII memory technology
- 4 x DDRII DIMM slots
- Supports DDRII800/667/533
- Max. capacity: 8GB |
|
Expansion Slot |
- 3 x PCI slots
- 1 x PCI Express x16 slot
- 2 x PCI Express x1 slots |
|
Graphics |
- n/a |
|
Audio |
- Realtek ALC888 7.1 channel CODEC with High Definition
Audio |
|
LAN |
- Gigabit LAN 10/100/1000 Mb/s
- PCIE x1 Realtek RTL8111B
- Supports Wake-On-LAN |
|
Connector |
- 2 x Serial ATA 1.5 Gb/s connectors by VIA®
VT8237A, support RAID (RAID 0, RAID 1, JBOD) and "Hot Plug" functions
- 2 x SATAII 3.0 Gb/s connectors by JMicron® JMB 363 (PCIE x1
interface), support RAID (RAID 0, RAID 1, JBOD), NCQ, AHCI and "Hot Plug"
functions
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
|
Rear Panel I/O |
HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone |
|
BIOS Feature |
- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support |
|
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial
Version) |
|
Hardware Monitor |
- CPU Internal Temperature Sensing
- CPU Ambient Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
|

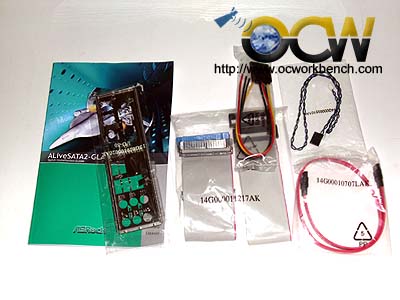

Accessories |
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x HDMI_SPDIF cable (optional) |
|
Form Factor |
- ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm |
|
OS |
- Microsoft® Windows® 2000 / XP /
XP Media Center / XP 64-bit / Vista™ compliant |
|
Certifications |
- FCC, CE, WHQL |
