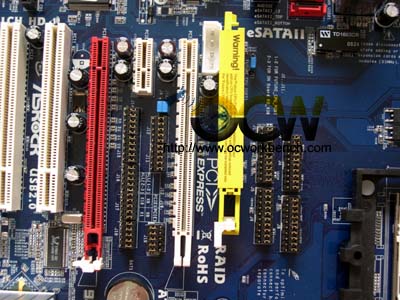

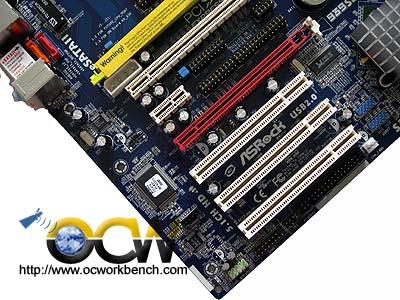

The board comes with 3 PCI, 1x PCIe x1, 2 x PCIex8 or 1 x PCIe x 16. The white and yellow PCIe slots can be configured to work in single card mode of PCIe x16 or run it in a dual 8x mode by setting the black jumpers located at the centre of the mainboard.

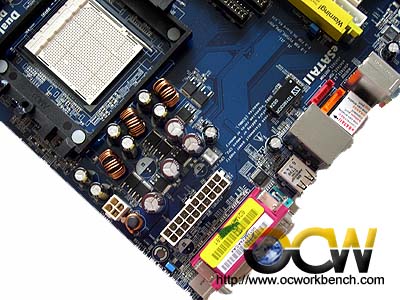

The power on board is based on a 3 phase design. Behind the slots are I/O controller chip, audio codec and at the centre you will see the Realtek Fast Ethernet Ethernet PHY. On the left is the ALC 660 5.1 audio codec.

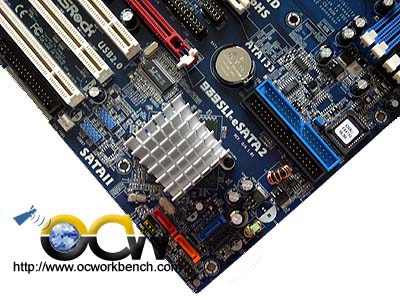

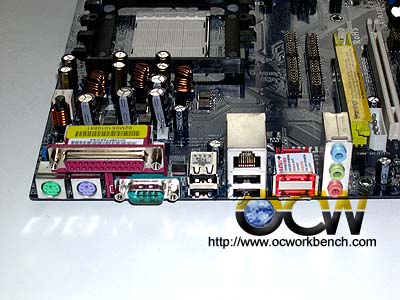

Further down to the left, you will see the 4 SATA II ports, 2 IDE channels supported by the ULi 1697 single chipset. Next to it is the ULI M1697 Single K8 chipset. It is mounted with a passive heatsink. The back panel consists of PS/2 Keyboard and Mouse,1 COM port, 2 eSATA2 ports, 4 USB ports, 1 Fast and 6ch audio ports.
