ASrock 939SLI-eSATA2 Benchmarks 2/8
Bluetooth 8 Feb 2006

Benchmarks

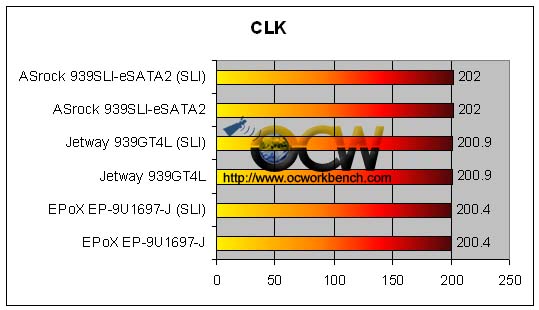

In this test, we measured the CLK used by the boards. The Jetway NF4 SLI board runs at a slightly tuned up clk speed of 200.9MHz. The EPoX EP-9U1697-J runs at 200.4MHz and the ASrock 939SLI-eSATA2 is slightly higher at 202MHz.

As this board supports compatible SLI, we configured it to work in SLI mode with Forceware 81.98 with no problems at all. We added a fan on top of the heatsink to improve stability at 1T cmd. Peg link is set to normal mode.

The following readings are obtained using CPU-Z.

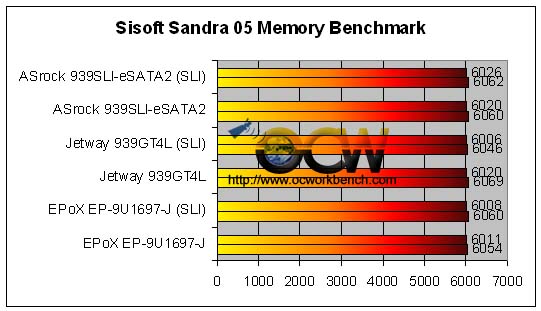

The following are the memory benchmarks of the two boards in two different configurations. They're taken at CAS 2, 5-2-2, 1T cmd. All the boards seem to score almost the same.

Discuss in Forum

Next >>>
