ASrock 775XFire-eSATA2 (Intel 945PL) Intro 5/5
Bluetooth 3 Feb 2006

eSATA External Enclosure

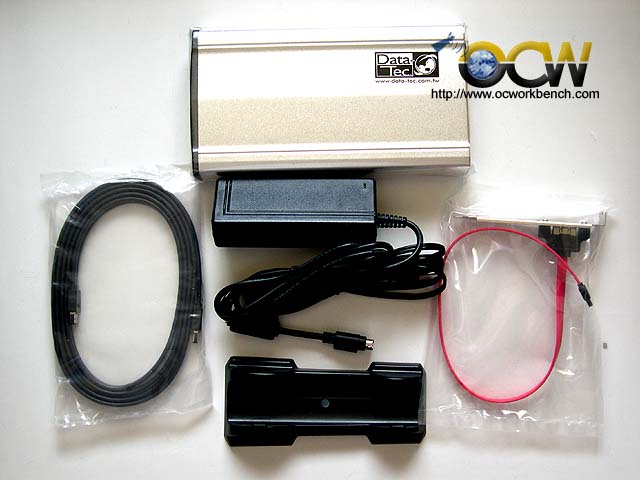

In our test, we will use Data Tec 3.5" eSATA enclosure. Below are pictures of the unit.

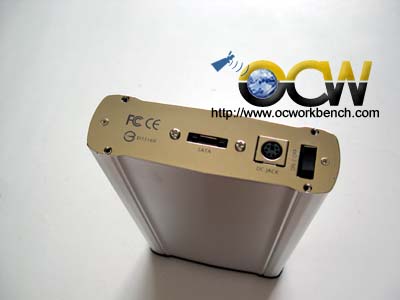

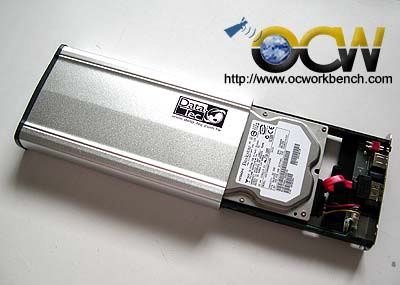

SATA port, DC Jack and Power button	SATA II HDD is slot into the enclosure and fastened by screws provided.

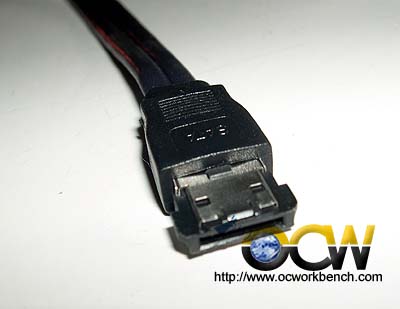

The eSATA cable plugged to the eSATAII connector of the mainboard.	eSATA header is different from the normal SATA cable. This is to be plugged into the back of the mainboard and the enclosure.
