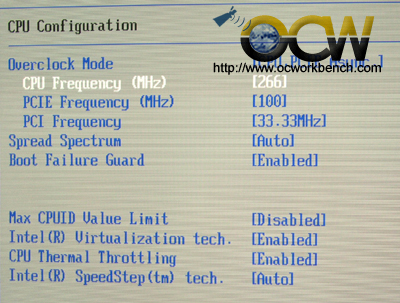

CPU Host Frequency range
is up to 340MHz. PCI can be fixed to 33MHz
selectable up to 37.5MHz. PCIe can be fixed at 100MHz too. |

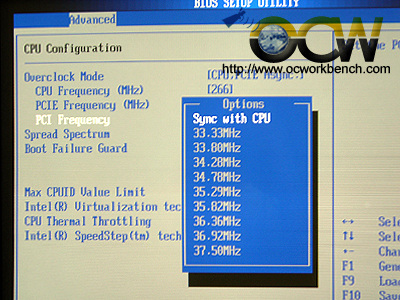

PCI Freq can be set to SYNC with CPU, FIX
to 33 or selected up to 37.5MHz. |
|

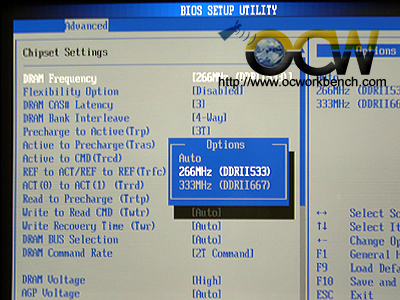

BIOS Screen when DDR2
is used. DRAM Frequency can be set to operate in ASync mode DDRII533,
DDRII667. The ram timings are adjustable, CAS, tRAS, tRP, tRCD, DRAM cmd
Rate. |

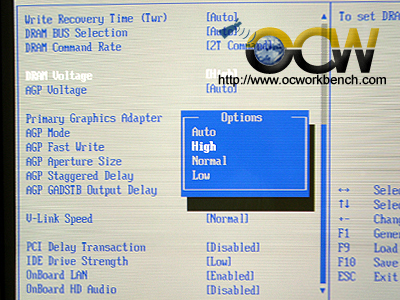

DRAM voltage can be set to Auto, High,
Normal or Low. |
