Link Frequency, also known as HTT
multiplier on other boards can be used to cap the max. frequency used in the
HyperTransport BUS. It is especially useful during overclocking the board to
high CLK speed. e.g. Multiplier of 10 (multiplier) x 300 (Clk) = 3.0GHz. In
order not to saturate the Hypertransport link, we set this to 800 (4x) so
that Hypertransport link is running at 4x300=1.2GHz. |

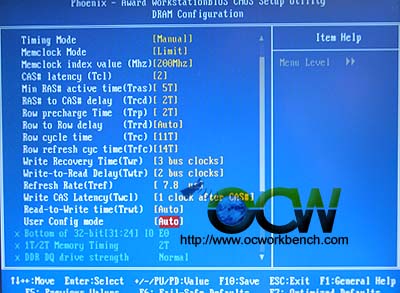

The ram timings can be set over here. In
our test, we set it to CAS 2, 5-2-2,1T cmd. The rest of the parameters is
not changed. |
