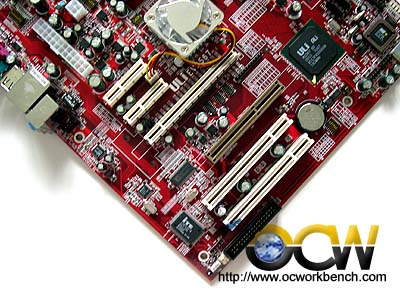

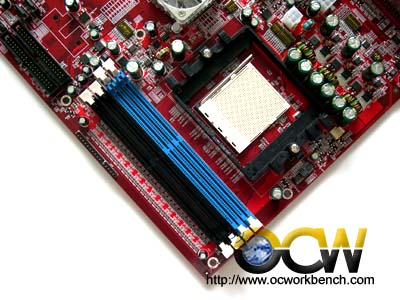

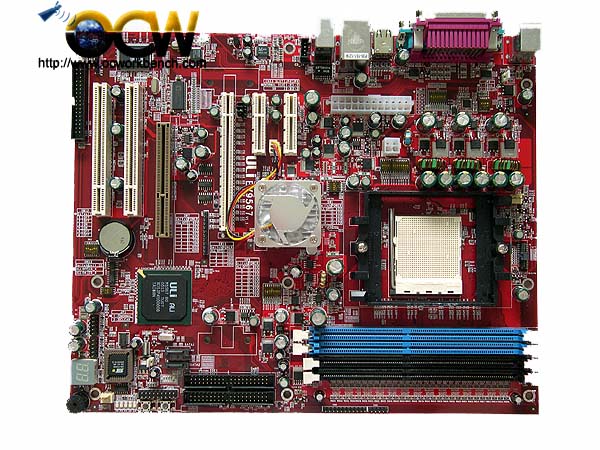

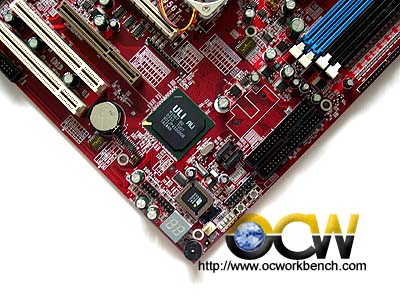

The board comes with 2 PCI, 1 AGP 8x slot, 1 PCI-E x16, 2 PCI-E x 2. On the right hand corner of the board, we see Sanyo capacitors and the power regulator. At the centre of the mainboard is the North Bridge M1695. Next to it is the Socket 939. 4 DIMM slots up to 4GB DDR-400 can be installed. On the left of the mainboard is the Diagnostic POST LED, BIOS, 2 SATA RAID ports, 2 IDE connectors and the South Bridge M1567.

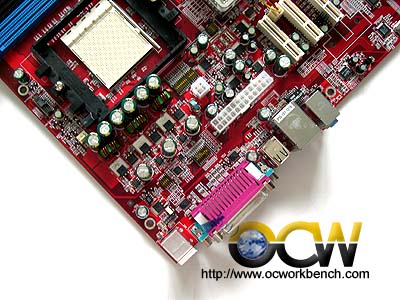

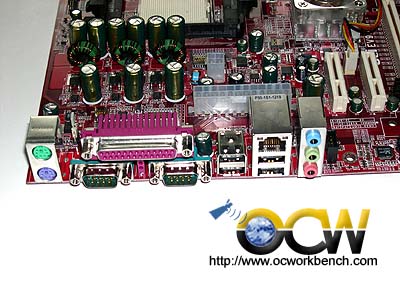

The back panel consists of PS/2 Keyboard and Mouse, COM1, Parallel port, 4 USB ports, 1 x Ethernet port and the audio ports.
