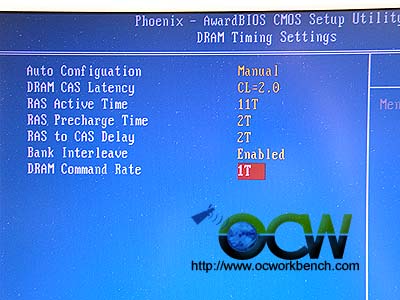

Under DRAM Timing Settings, the ram timings
can be adjusted or set to Auto, optimised settings. In our tests, we set it
to the above CAS 2, 11-2-2, 1T cmd rate. There seems to be a issue with the
BIOS because the RAS To CAS Delay will return to AUTO and RAS Active Time is
back to 7 after reboot.

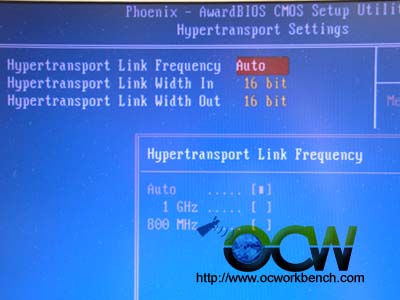

HTT Frequency is set to 5x by default
(1GHz). You can set this to 4x (800Mhz) if you intend to overclock. There
are no 3x, 2x, 1x options. HTT Width
is 16 up 16 down.

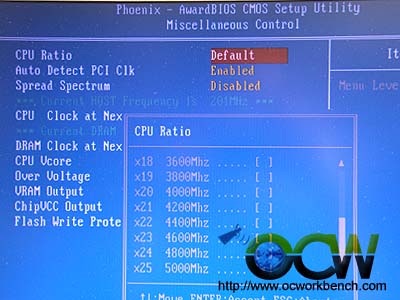

Multiplier can be adjusted from 6x ~ 25x

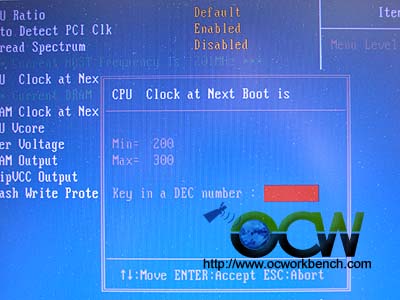

CPU Frequency can be set from 200 ~ 300MHz at 1MHz stepping.

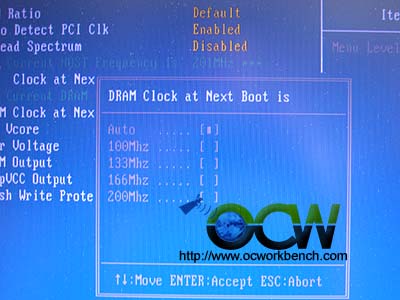

ASync DRAM clk. Select 200 for 1:1, otherwise run 166/133/100
to run the RAM async to CPU.

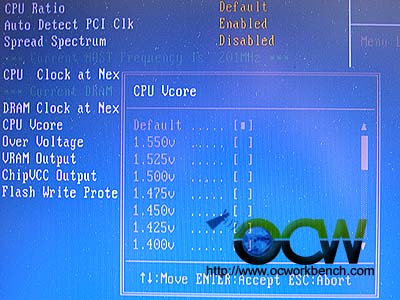

CPU Vcore can be set up to 1.550v

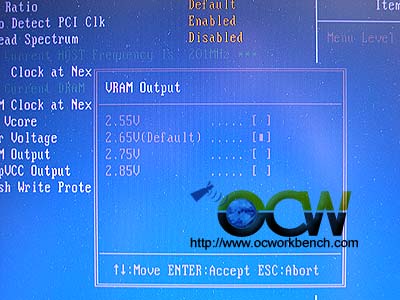

DRAM Voltage can be set up to 2.85V. It would be good if more
options up to 3.2V is available.

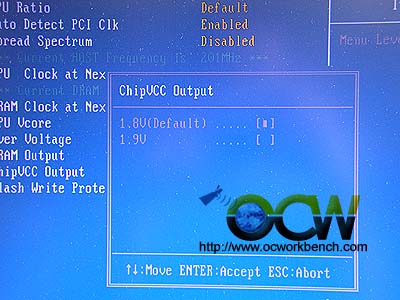

Chipset voltage can be set to 1.8v default or 1.9v for more
stability.
