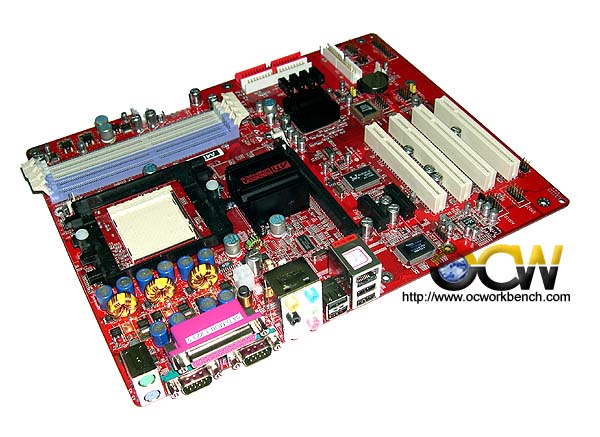

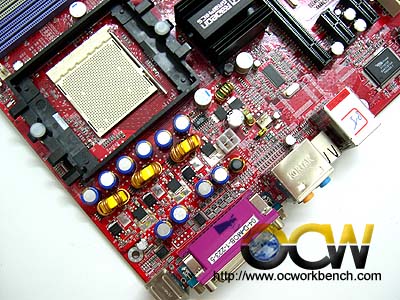

This clean layout of this mainboard is definitely something that deserves a mention. First of all, lets take a look at the rear of the mainboard. There are connectors for COM1/2, PS/2 Keyboard, mouse, parallel port. 4 USB, and audio ports.

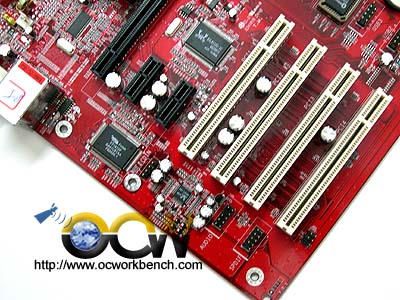

The board comes with 4 PCI, 1 PCI-E x 16, 2 PCI-E x 1 which allows for future expansion cards. The power on board is based on a 3 phase design. On the PCB, we see the supporting chips. As the south bridge do not support native Gigabit Ethernet, Jetway implements a PCI based Realtek 8110S Gigabit Ethernet 8110S solution. We can also see the Realtek ALC880 8ch Codec.

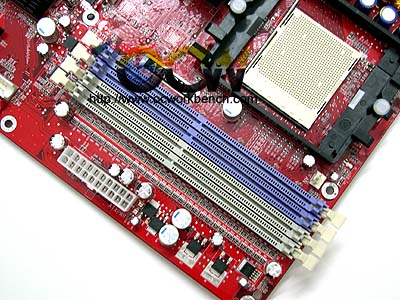

There are 4 DIMM slots supporting up to 4GB of DC-DDR400. There are 2 IDE ports supporting up to 4 IDE devices. 4 SATA ports are also supported by the chipset. The 4 SATA ports can be "bundled" together to form a RAID 0/1/0+1/JBOD array.
