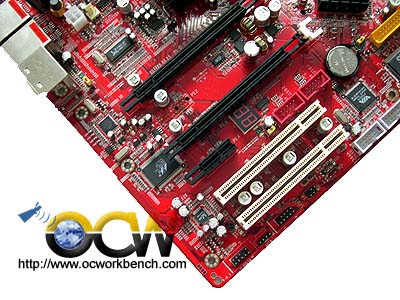

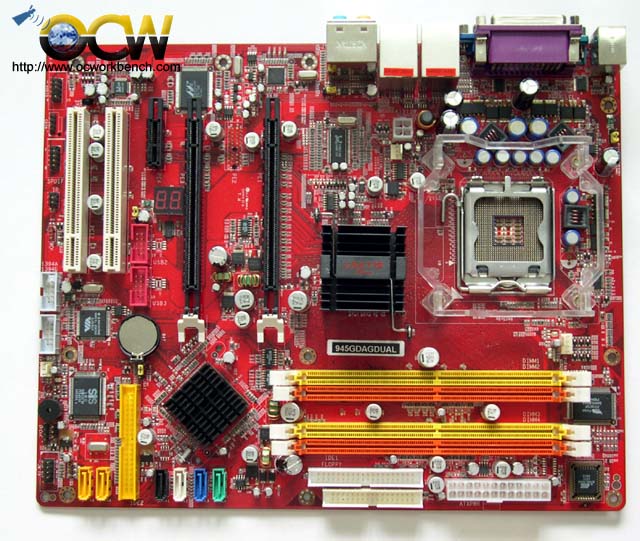

The mainboard comes with 2 PCI, 1 PCIex1,  1 PCIe x 4, 1 PCie x 16 slots. The PCIe x 4 slot is full length slot which can be used with another PCIe graphics card. Right behind are the Dual LAN using Marvell controllers. A Realtek ALC880 codec is onboard supporting Azalia Audio. At the centre is the North bridge 945G and on the right is the LGA775 socket.

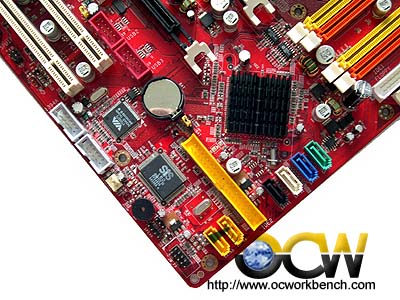

On the left bottom corner of the board, there are the connectors for hooking up external brackets for USB and 1394. The VIA 6307 supports 2 x 1394 ports. Further down, you will see SiS 180 which supports 2 additional SATA 1 ports in RAID array + 1 IDE channel. The ICH7 south bridge supports 4 SATA II ports + 1 IDE channel. To the right is 4 x DDR2 slots supporting Dual channel DDR2-667 (up to 4GB).
