Gigabyte GA-K8VT890-9 VIA K8T890 PCI-E Mainboard Intro 4/4
Bluetooth 9 Mar 2005

BIOS

These are some of the more specific options available in the BIOS F2G. It is similar to the F1 BIOS.

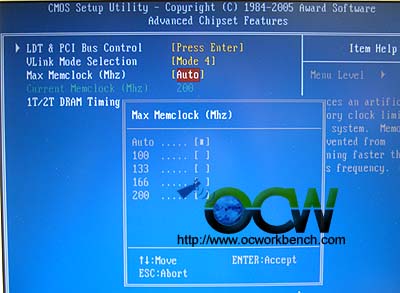

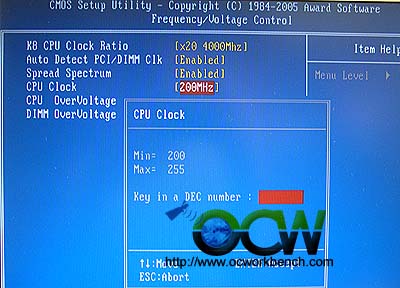

CPU Frequency range from 200 ~ 255MHz	There are no options to adjust CAS latency and ram timings. Max Memclk Clk can set to Auto or ASync 100,133,166

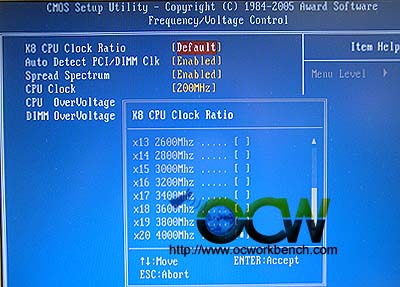

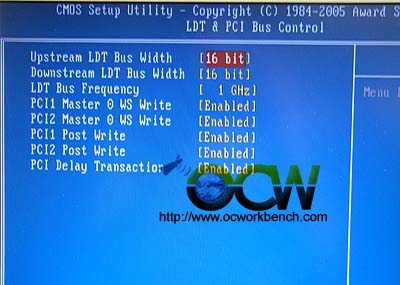

Multiplier can be set from 6x ~ 20x.	HT Width and HT Speed can be set to 8/16 bits and 200/400/600/800/1GHz respectively.

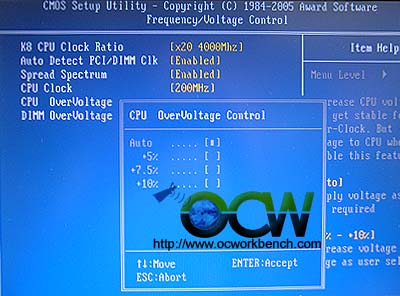

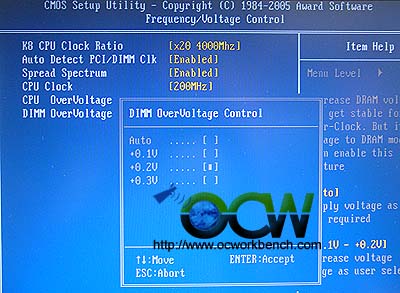

Voltage adjustments of CPU, +5%,+7.5%,+10% of default voltage	Vdimm can be adjusted up to +0.3v of default which is 2.8v There are no adjustments for chipset, pci-e voltage levels.
