Gigabyte GA-8I955X Royal i955X Mainboard Intro 2/4
Bluetooth 16 June 2005

Gallery

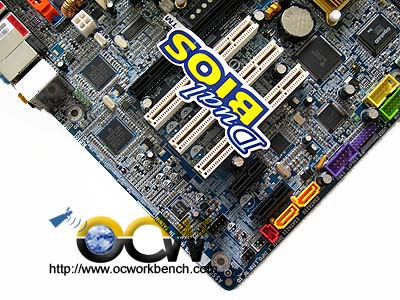

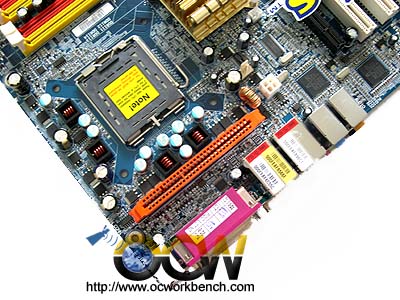

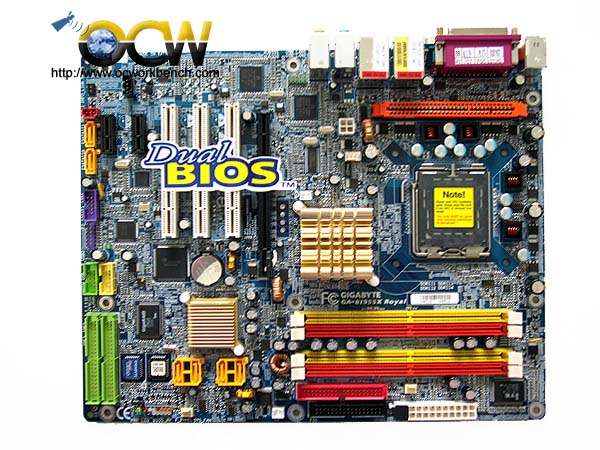

The board comes with 3 PCI, 1 PCI-E x16, 2 PCI-E x 1. On its left are two SATA (yellow connectors) and we can see the chipset supporting it is the Sil3132. Behind the PCI slots is the audio codec ALC882 and 2 Broadcom GbE. To the right is the AUX power, CLk Gen, DPS Slot, Socket LGA775. The North bridge is right at the centre of the mainboard.

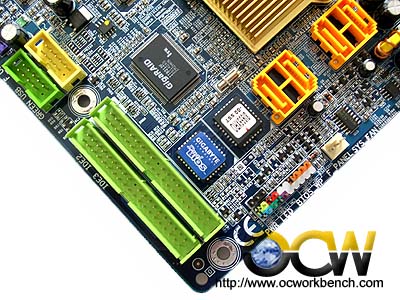

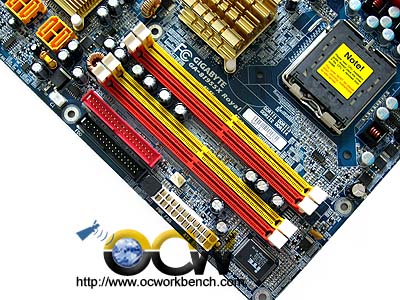

At the bottom portion of the mainboard, we can see the 2 IDE RAID ports supported by GIGARAID chipset. 4 SATA Raid ports supported by the ICH7 south bridge. Dual BIOS is available. Further to the right are 4 DIMM slots supporting up to 4GB DIMM. There is one IDE connector and Floppy connector right below the DIMM slots.

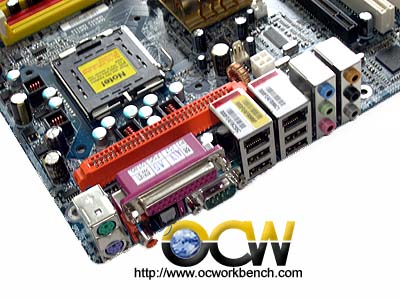

The back panel consists of PS/2 Keyboard and Mouse, S/PDIF Coaxial, COM1, Parallel port, 2 GbE, 4 USB ports, 1 x and the audio ports.
