Winfast NF4UK8AA-8EKRS NF4 Ultra Mainboard Gallery 4/4 Bluetooth 15 Jan 2004
BIOS

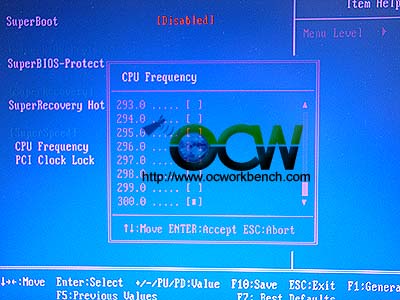

CPU Frequency can be set from 200 ~ 300MHz at 1MHz stepping.

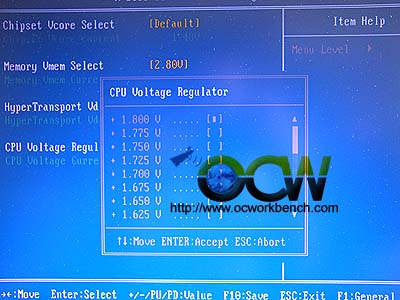

CPU Vcore can be set up to 1.800v. This is something that
I would advise you not to exceed 1.60v unless you have really good cooling
of your CPU.

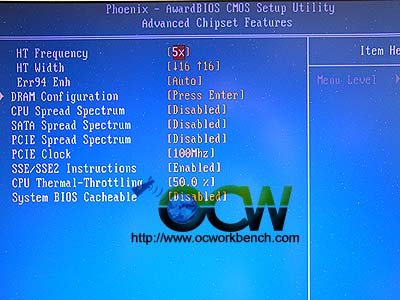

HTT Frequency is set to 5x by default
(1GHz). You can set this to 3x or 4x if you intend to overclock. HTT Width
is 16 up 16 down.

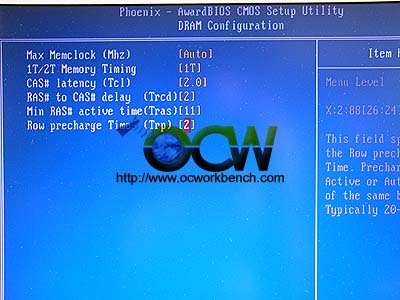

Under RAM Configuration, you can set to run
the memory in SYNC (AUTO) or ASYNC modes of 100,133,166 so that memory runs
slower than CPU clk at a ratio. 1T/2T timing, 1T is faster than 2T. IN our
tests, we set the memory timings to CAS 2, 11-2-2 (tRAS, tRCD, tRP), 1T cmd.

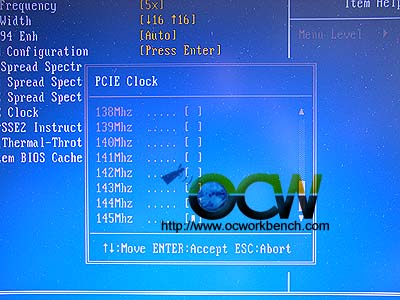

PCI Clk is adjustable. We set it to 100MHz.

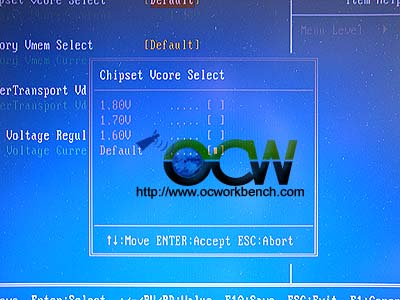

Chipset voltage can be set to AUTO, 1.6v, 1.7v, 1.8v

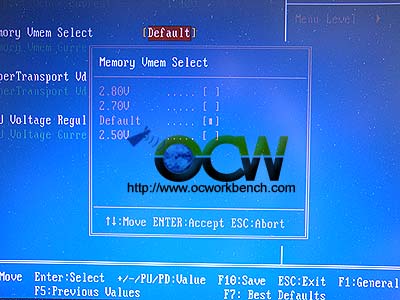

Memory Voltage can be adjusted as well. As we are using CAS
2, we ran our Corsair TwinX at 2.8v.

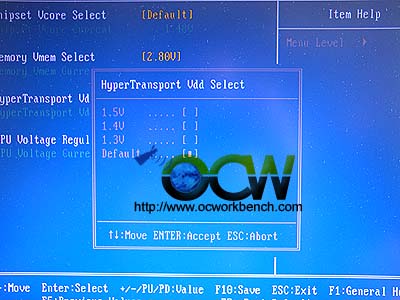

Hypertransport Vdd voltage is selectable from a range from
default to 1.3, 1.4 and 1.5v
