Winfast NF4UK8AA

Test Results

System Specs

A64 Socket 939 3000+ Winchester
Corsair Twinx 1024-3200C2PT (PC3200 XMS 1Gb Matched Pair)
20pin Seasonic 350W Continous Silent PSU

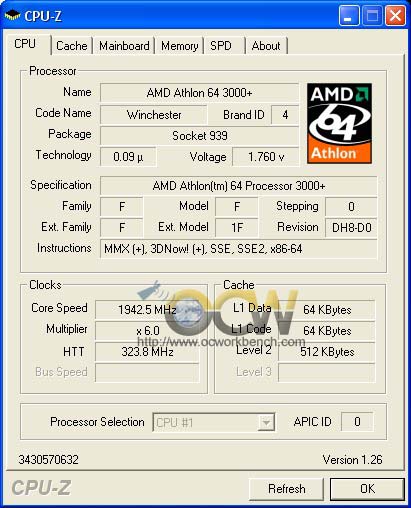

Using the provided BIOS, I am able to push the system to insane HTT at 323.8 as you can see from the screen shot below. It is not very stable but it is achievable with a low multiplier of 6x.

So here is my best overclock so far (and all set in BIOS!):

HTT:                                        282

HT:                                          x3

FID (CPU multiplier):          9x

Vcore:                                    max (1.8v)

Vdimm:                                 max (2.8v)

Chipset voltage:                max (1.8v)

HTT voltage:                                    max (1.5v)

Mem divider:                       166 (DDR333)

Command:                          T1

RAS# to CAS#:                   4 clocks

RAS# Precharge:               4 clocks

Cycle Time (Tras):               8 clocks

Bank Cycle Time (Trc):      21 clocks

After 6hrs running of running, here are my temps using speedfan 4.20:

CPU Idle temp is 30ºC

CPU full load max is 43ºC (40ºC average)

System idle temp is 35ºC

System full load max 37ºC (36ºC average)

Artic Cooling Silentium T2 case

Artic Cooling Freezer64 CPU cooler (fitted about 6 days ago)
