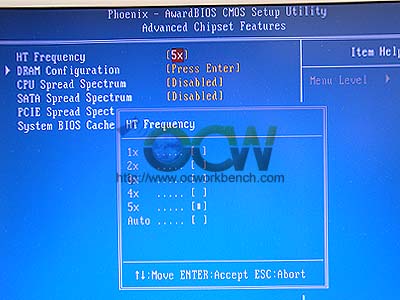

HT Frequency 1x ~ 5x |

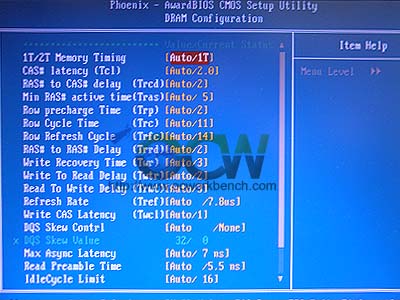

DRAM configuration has lots of options for
you to tweak. The more important ones are 1T/2T Memory Timing. CAS Latency (tcl),
RAS to CAS (tRCD), Min RAS#active time (tRAS), Row Precharge time (tRP) and
Row precharge time (tRP). My settings is based on Corsair TwinX CAS 2
module. which runs at CAS 2, 5-2-2 1T |
 |
 |
|

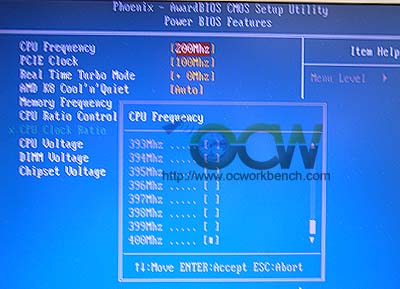

CPU Frequency can be set from 200 to
400MHz |

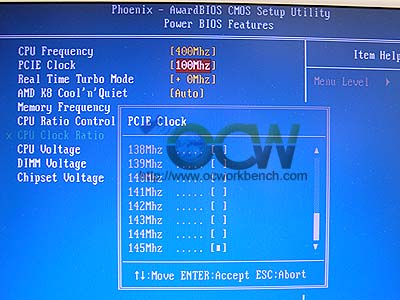

PCI-E Clock can be overclocked as well to
145MHz |
 |
 |
|

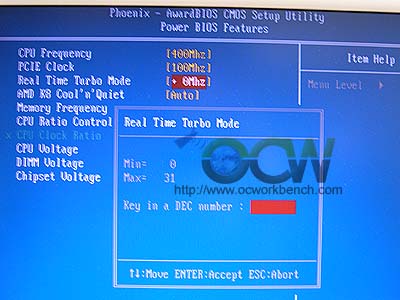

Real time turbo mode allows the system to
auto overclock. It accepts a min of 0 to 31. In our test, we set it to 0 so
that it won't affect the results. |

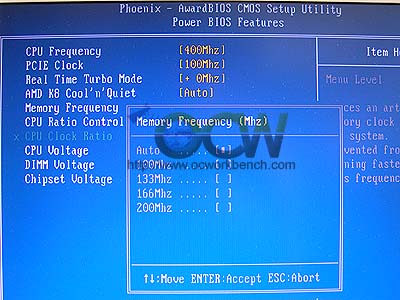

Memory Frequency is the ASync memory
setting which allows you to run higher CPU Frequency but run your memory at
a lower ratio. Useful for o/c beyond 250MHz. |
 |
 |
|

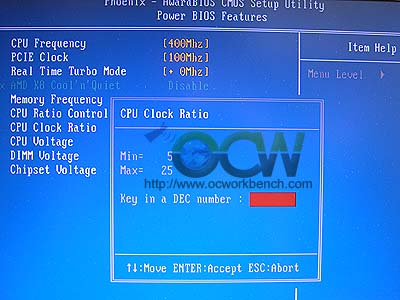

CPU Clock Ratio or multiplier. A setting
of 5x to 25x is selectable. |

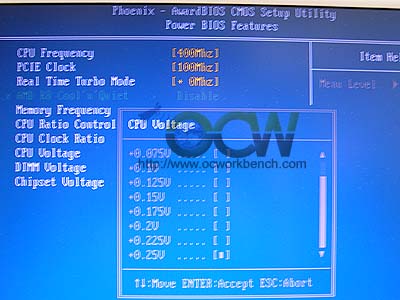

CPU voltage can be set up to 0.25v which
is 1.55+0.25 = 1.8v |
 |
 |

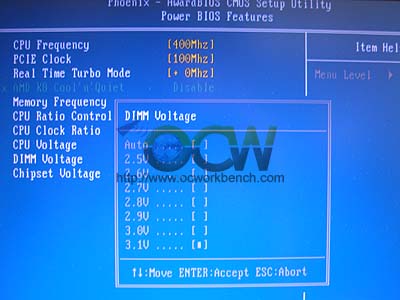

Vdimm can be set up to 3.1v. Those who
uses Winbond
BH-5 should be happy. |

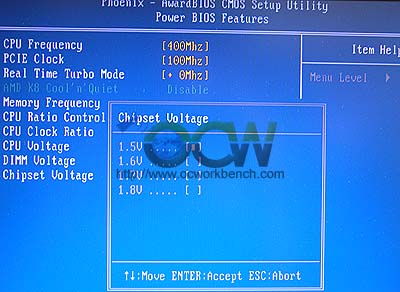

Chipset voltage can be set from 1.5v to
1.8v |
|
|
|
