EPoX
5LWA+ i925XE Mainboard Intro 4/5 Bluetooth 10 May 2005
BIOS

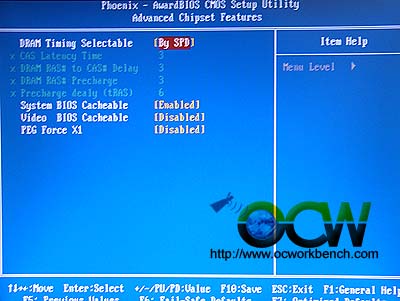

DRAM timing can be set manually or used as
SPD. In our test, we set it to SPD which detects as CAS 3, 8-3-3 (tRAS=8).

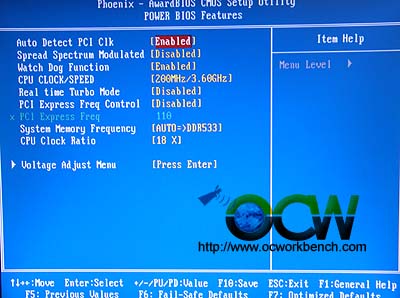

Over at this menu, you can select the CPU
Clock/Speed, Realtime Turbo mode, PCI Express Freq Control, System Memory
Frequency, CPU Clock Ratio, Voltage adjustments

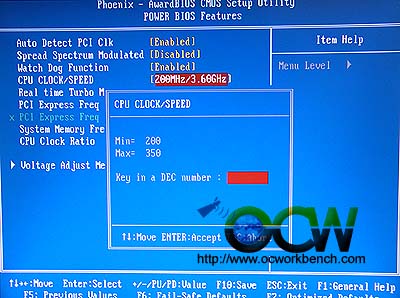

CPU Clock Speed is selectable from 200 to
350

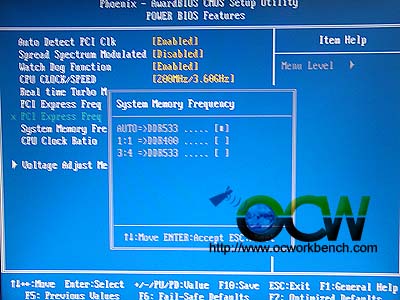

Memory Frequency can be set to run in Sync
or ASync mode. In this case, we can run the memory at DDR533 when running
our P4 3.6E which is a FSB800 Processor.
