EPoX 5LWA+ i925XE Mainboard Intro 2/5
Bluetooth 10 May 2005

Gallery

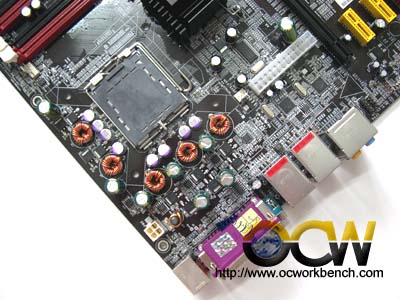

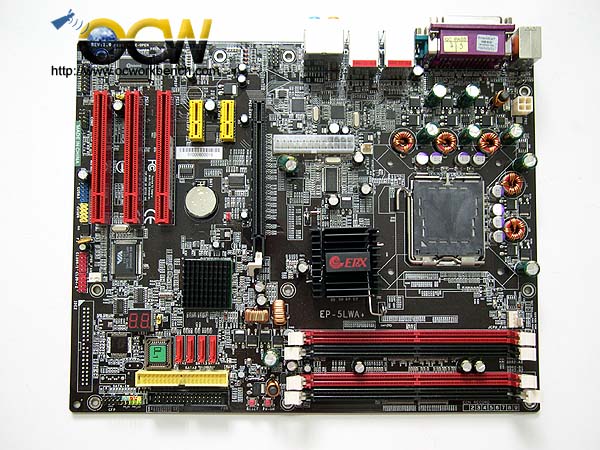

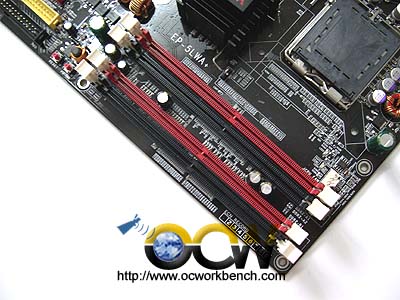

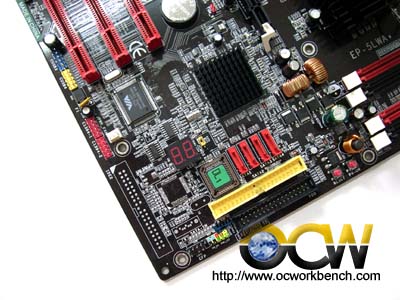

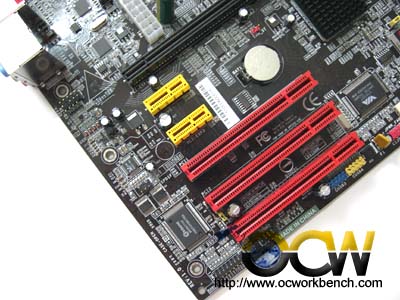

The board comes with 3 PCI, 2 PCI-Ex1 and 1 PCI-Ex16 for the graphics card. The power on board is based on a 5 phase design. At the bottom of the board, we see 4 DDR-2 slots supporting up to 4GB. There is only 1 IDE ports supporting up to 2 IDE devices. The 4 SATA ports supported by ICH6R supports RAID 0,1. On the left bottom corner we can find the Debug LED. The power on and reset switch are easily accessible for DIY users. This is definitely a better way than to find a thin wire to short circuit the front panel Soft Switch.

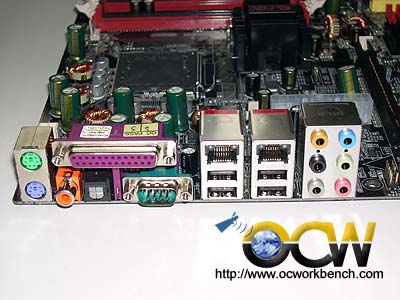

The back panel consists of PS/2 Keyboard and Mouse, SPDIF, 4 USB ports, 2 x GbE port and 8 ch audio ports. There is 1 COM and 1 LPT. The other is a Coaxial out and S/PDIF out.
