BIOS for A9S

After installing the A9S, the system will boot up. Entering the BIOS shows a different BIOS screen from the PF88 BIOS. It is like an entirely new PC. The A9S BIOS is quite limited as it doesn't come with multiplier control, voltage adjustments and no ram timing options available.

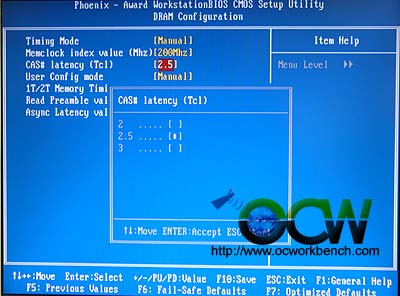

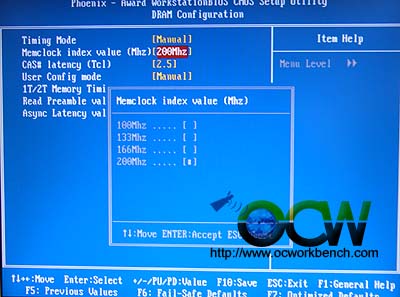

CAS Latency can be set to 2, 2.5, 3. No other ram timing adjustments are available. Our Corsair TwinX defaults to CAS 2, 5-2-2	Max Mem Clk can be set to run memory in Async mode

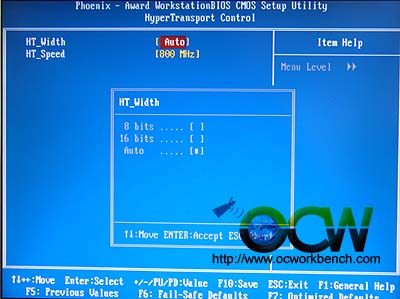

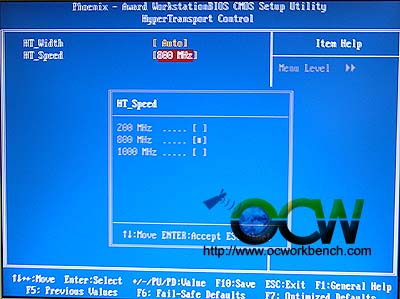

HT Width can be set to run in 8 or 16 bits	HT Speed can be set to 200,800 or 1GHz. When set to 1GHz, we can't get the system to boot.
