ECS KN2 SLI Extreme nForce4 AMD X16 Board Intro 3/6
Bluetooth 1 Dec 2005

Pricing of
7800GTX

>>>

Top Hat Flash

This TOP HAT Flash is making a come back on top notch boards which makes it easy to recover from bad flashes just by "wearing the hat" on top of the dead BIOS. Most ECS boards have their BIOS soldered on board. A bad flash will kill the BIOS. To recover the bad flash, just attach the Top Hat Flash which contains an older BIOS code and boot up the system. Once that is done, remove the Top Hat Flash and flash in the correct BIOS to the onboard BIOS.

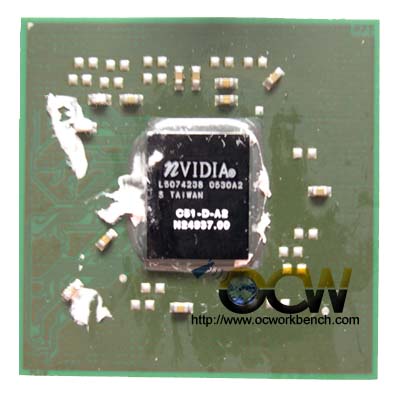

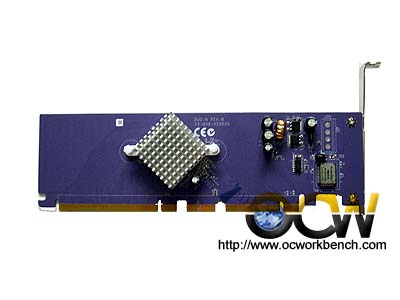

DUO-N Card. Under the heatsink is C51-D chipset. The BIOS on the card is soldered onto the card. Top Hat flash can be used to recover bad BIOS flash.	The C51-D A2 stepping chipset

Texas Instrument 1394a controller	SiliconImage 3132 SATAII(NCQ) controller
