Benchmarks

The system is run twice, once with a Powercolor X850XT PE card. The second is in CrossFire mode using a Powercolor X850XT PE + Powercolor X850XT CrossFire Edition card. When run with a single card, the card must be inserted into SLOT 1 and by default it is set to 16x. For CrossFire mode, the BIOS needs to be adjusted to support Dual 8X mode.

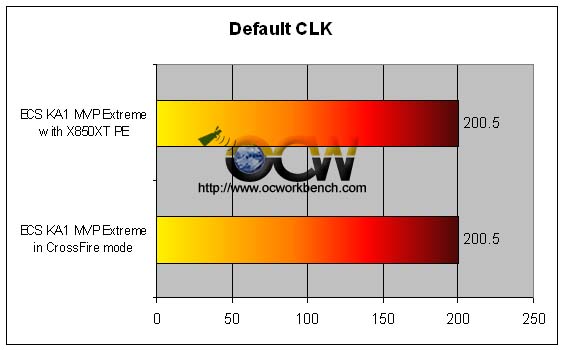

For completeness, a measurement of the Default CLK is taken and it is recorded as 200.5MHz.

The following readings are obtained using CPU-Z.

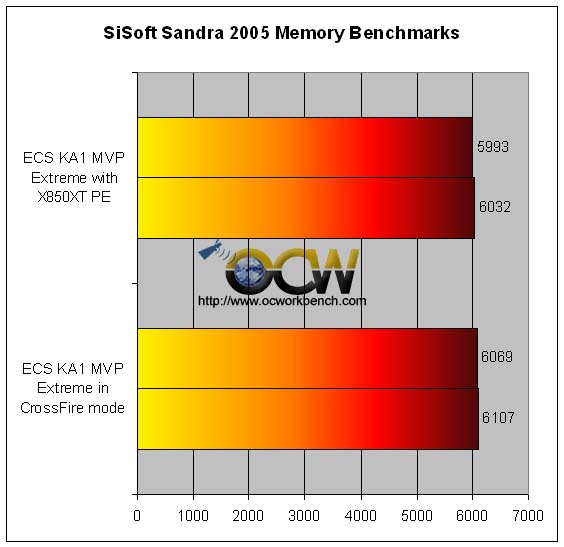

The Memory Benchmarks basically gives us an indication on how much bandwidth is there for the I/O. The higher the numbers, the better it is. This is especially true for graphics intensive applications.
