ASrock P4Dual-915GL Mainboard Gallery 2/4
Bluetooth 1 Mar 2005

Pricing from various vendors >>>

Gallery

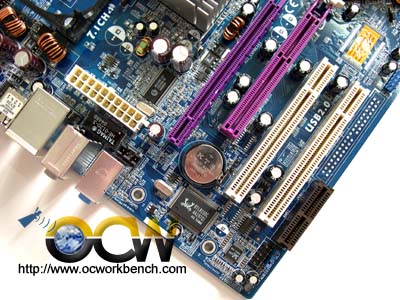

The board comes with 1 AMR, 2 PCI, 1 PCI-E x 4, 1 AGP slot which allows for future expansion cards. The power on board is based on a 3 phase design. On the PCB, we see the supporting chips e.g. Realtek ALC850 codec. The battery and clear cmos is located at the top of the AGP slot.

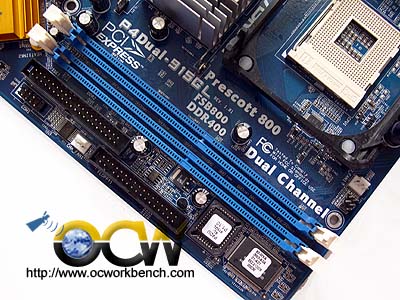

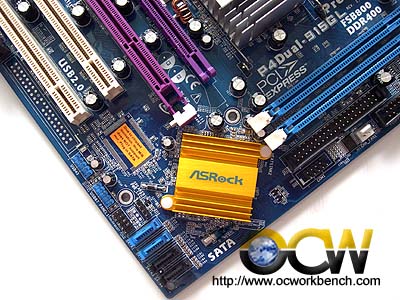

At the bottom of the board, we see 2 DIMM slots supporting up to 2GB of DC-DDR400. There is only 1 IDE IDE support up to 2 IDE devices. So, you might want to plan ahead on how to hook up your HDD and CD/DVD writer. 4 SATA ports are also supported by the chipset. On the side are 2 ports for connecting to USB brackets.

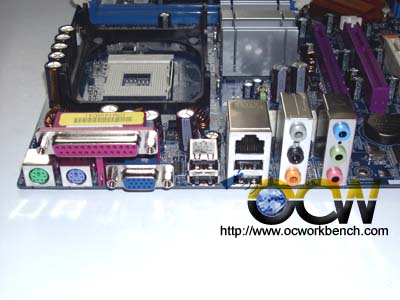

The back panel consists of PS/2 Keyboard and Mouse, VGA out (internal graphics). COM1, Parallel port, 4 USB ports, 1 x Ethernet port and the audio ports.
