ASrock K8NF4G-SATA2 (C51G) Intro 2/5
Bluetooth 19 Sep 2005

Gallery

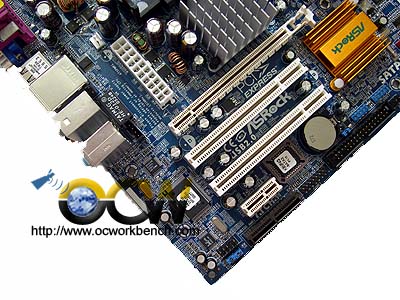

The board comes with 2 PCI, 1 PCie x16, 1 PCI-Ex1 and 1 AMR slot. The power on board is based on a 3 phase design. If you notice, Behind the slots are I/O controller chip, audio codec and at the centre you will see the Fast EthernetPHY chip. On the left is the ALC 850 7.1 audio codec.

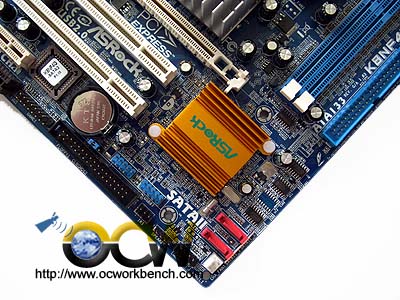

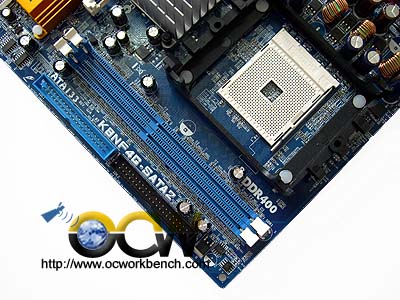

Further down to the left, you will see the floppy connector, USB external connectors. south bridge, SATAII ports, front panel connectors. Towards the centre, we see the C51G north bridge, CPU Socket 754, 2 DIMM slots and 2 IDE ports.

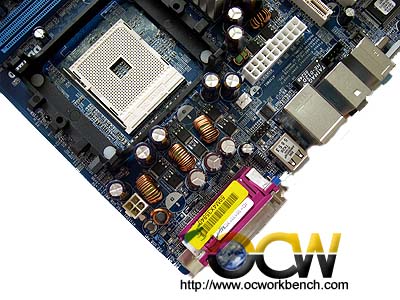

The back panel consists of PS/2 Keyboard and Mouse, 4 USB ports, 1 x Fast Ethernet port and 8ch audio ports.
