ASrock 775Dual-915GL Mainboard Intro 1/4
Bluetooth 5 Apr 200
5

 Pricing from
various
vendors
>>>

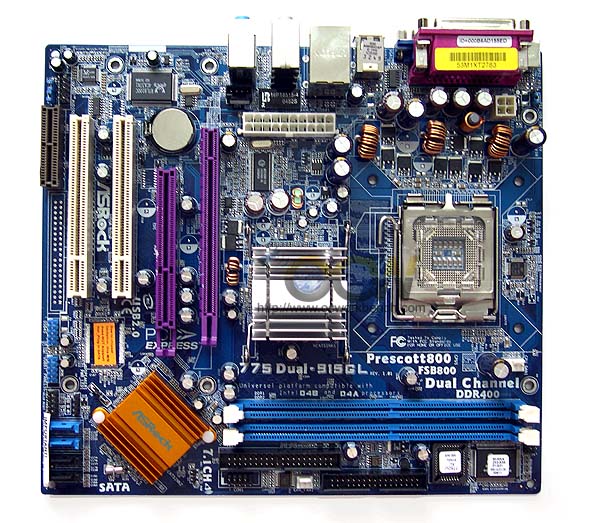

775Dual-915GL

A few weeks ago, we reviewed the P4Dual-915GL which supports the Socket 478 processor. Today, we take a look at another board 775Dual-915GL which is also based on the same chipset 915GL and offers 5 output ports.

As you probably already know, Intel 915GL chipset does not support external AGP nor PCI-E interface. So, how is it possible for ASrock to make a board that supports 2 external graphics interfaces AGP and PCI-E using a conventional 915GL chipset. This is what I call innovation! ASrock calls them AGI Express and AGI8X interface.

From my understanding, ASrock combined the PCI bus to form an AGP slot and use 4 PCI-E X1 to form a PCI-E x 4 PCI-E slot. One question came to my mind is that, would it be enough for bandwidth hungry graphics cards? Well, we will take a closer look later.

The Asrock 7754Dual-915GL board supports the socket 775 P4 processor with HT technology. It is prescott ready and supports the usual Dual channel DDR400. It comes with some basic overclocking features. The interesting fact is that the board comes with internal Intel Media Accelerator Graphic Engine (H/W DirectX 9.0 support). We tested the on board video and found it to be satisfactory. DX9 games runs fine except those which needs Hardware T&L. If you 4 spare monitors, 1 AGP and 1 PCI-E card,  you can hook up to 5 monitors and have a surround display.

The BIOS also contains some settings allowing you to overclock your PCI-E speed to improve the PCI-E graphics card performance.

Other features of the board include 4 ports of SATA 1.5Gb/s, 7.1 channel audio, Ethernet, 8 x USB ports (4 at rear, another 4 through extension brackets).

LGA775 for Intel P4 processor
Intel 915GL chipset



  • ASRock Dual series, compatible with both PCI Express VGA card and AGP VGA card
  • ASRock A.G.I. Express slot to adopt PCI Express x16 VGA card
  • ASRock A.G.I.8X slot to adopt AGP8X/4X VGA Card (1.5V only), an unique VGA upgrade interface on i915GL platform
  • DirectX 9.0 on board VGA with Dynamic Vedio Shared Memory maximum at 224MB*
  • Surround Display: Up to 5 monitors display capability
  • 3-phase power interface design, compatible with all series of LGA775 processors
  • Ultimate 6.4GB/s memory bandwidth by
    Dual channel memory technology
  • Advaned storage interface : 4 ports of Serial ATA 1.5Gb/s
  • Superior 8 channel 3D surrounding Audio
    *with the pre-condition of at least 512MB system memory
  • Specifications

    CPU

    - LGA775 for Intel Pentium 4/Celeron processor
    - FSB 800/533 MHz
    - Supports Hyper-Threading Technology
    - Prescott support

    Chipset - Northbridge: Intel 915GL
    - Southbridge: Intel ICH6
    Hybrid Booster - CPU Frequency Stepless control
    - AGP/PCI frequency control
    - ASRock U-COP
    - Boot Failure Guard (B.F.G)
    Memory - Dual Channel DDR memory technology
    - Supports DDR400/333
    - DIMM slots: 2
    - Max. capacity: 2GB
    Slots - ASRock A.G.I. Express slot: Compaitble with PCI Express x16 VGA card* - Worldwide patent ASRock A.G.I.8X graphics
    upgrade slot (AGP8X/4X compatible)*
    - 2 x PCI slots( PCI 2.3 compliance)
    - 1 x AMR slot

    * The VGA card compatible list for AGI Express and AGI8X.

    VGA - Integrated Intel Media Accelerator 900 in Intel 915GL chipset, capable of supporting DirectX 9.0 related application - Dynamic Video Shared Memory Max. 224MB
    Audio  - Realtek ALC850 8 channel AC'97 audio codec
    LAN - Realtek RTL8100C PCI 10/100 Fast Ethernet
    controller
    - 802.3u, WOL supported
    Connector - 4 x Serial ATA 1.5Gb/s connectors
    - 1 x ATA100/66 IDE connectors
    ( supports 2 x IDE devices)
    - 1 x Floppy connector
    - CPU/Chassis FAN connectors
    - 20 pin ATX power connector
    - 4 pin 12V power connector
    - CD audio in header
    - Front panel audio connector
    - 2 x USB 2.0 header (to support 4 USB2.0 ports) - 1x COM port header
    Rear Panel I/O ASRock 8CH I/O Plus
    - 4 x USB2.0 ports
    - 1 x RJ45 LAN port
    - 1 x VGA port
    - 1 x PS2 Keyboard connector
    - 1 x PS2 Mouse connectors
    - 1 x Parallel port (LPT1)
    - 1 x 8 channel Audio ports ( Line In/Out, Mic In)
    - 1 x Audio ports ( Line In/Out, Mic In)
    BIOS Feature - 4Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
    Support CD - Drivers, Utilities, AntiVirus Software,
    ASRock PC DIY Demo

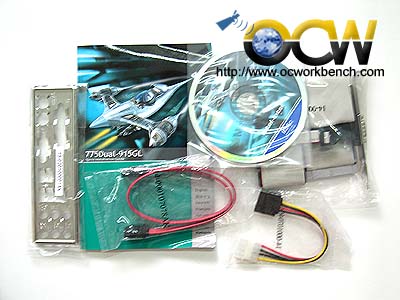

    Accessories - Quick Installation Guide, Support CD, I/O shield
    - Floppy/ATA 100 cables
    - 1 x SATA data cable
    - 1 x SATA 1-to-1 power cable - 1 x COM Port Bracket
    Form Factor Micro ATX, 244mm x 218mm
    Certifications FCC, CE, MS WHQL

    Discuss in Forum
