ABIT FATAL1TY AN8 NF4 Ultra Mainboard Intro 2/5
Bluetooth 11 Mar 2005

Gallery

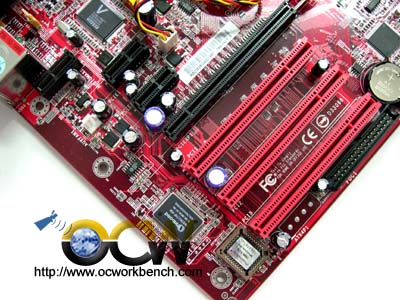

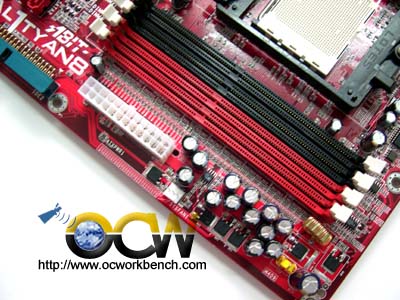

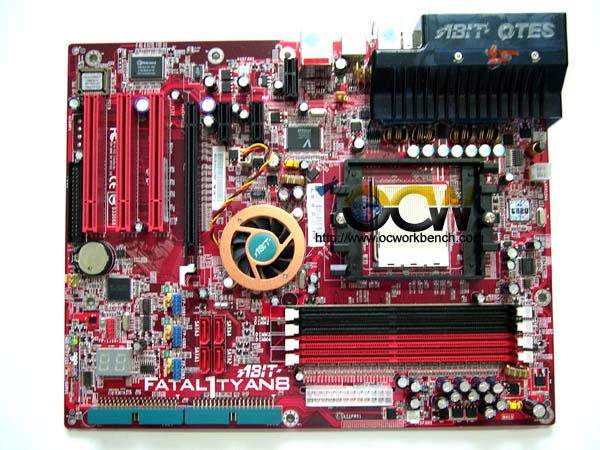

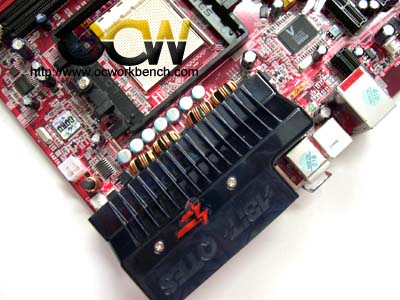

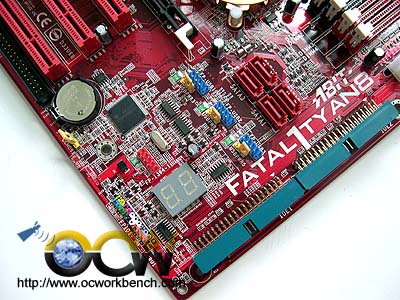

The board comes with 3 PCI, 1 PCI-Ex16 for graphics card, 2 PCI-Ex1 which allows for future expansion cards. The power on board is based on a 4 phase design. At the bottom of the board, we see 4 DIMM slots supporting up to 4GB of DC-DDR400. There are 2 IDE ports supporting up to 4 IDE devices and 4 SATA ports are also supported by the NF4 Ultra chipset. They can be mixed and match to form a NVRAID array. On the left bottom corner we can find the Debug LED and a coloured front panel pin connectors.

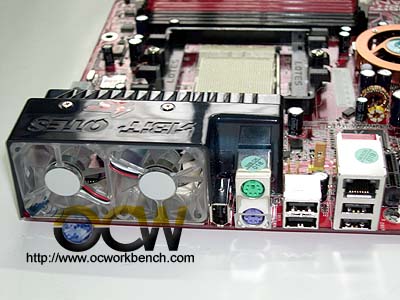

The back panel consists of PS/2 Keyboard and Mouse, Firewire,, 4 USB ports, 1 x GbE port. Audio ports can be attached separately through the daughter card provided. Com port and Parallel port seems to have "phased out".
