ABIT AN8-SLI (NF4 SLI) Intro 2/5
Bluetooth 29 Aug 2005

Gallery

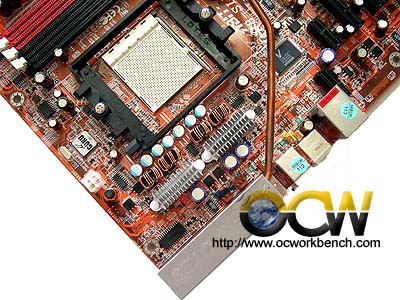

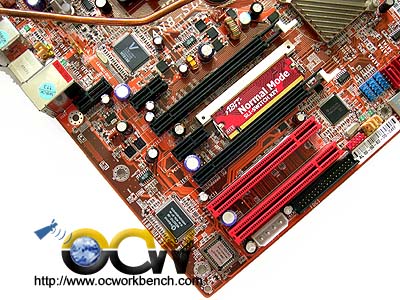

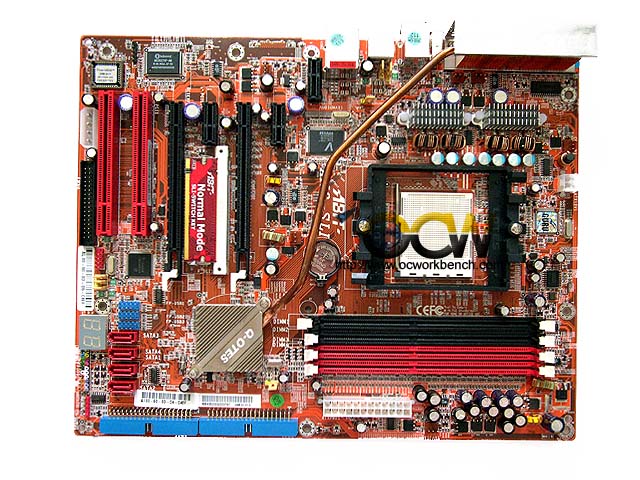

The board comes with 2 PCI, 1 PCIex16 or 2 PCIex8, 2 PCIe x 1 and a port for the Audiomax 7.1 riser card. To the right  of the mainboard, we can see the heatsinks on top of the MOSFETs and the heatpipe. The Viesette GbE PHY chip. At the centre of the board is the SLI/non-SLI switching slot. This is where you choose to operate the board in non_SLI or SLI mode.

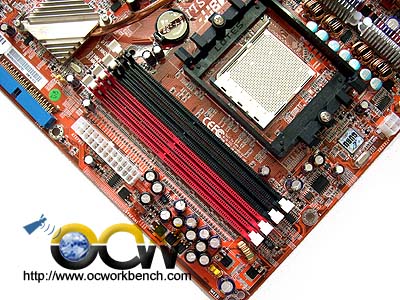

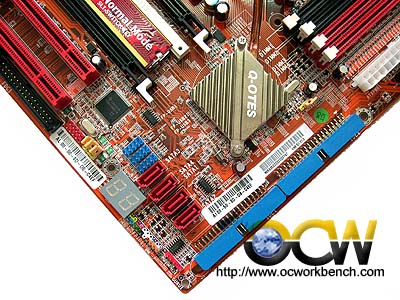

At the bottom of the board, we see 4 DIMM slots supporting up to 4GB of DC-DDR400. There are 2 IDE ports supporting up to 4 IDE devices and 4 SATA II ports are also supported by the south bridge. The 4 SATA ports can be configured to work in a RAID 0,1,0+1 array.

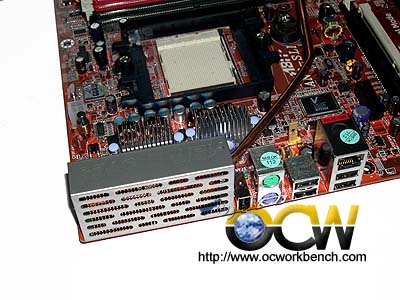

The back panel consists of PS/2 Keyboard and Mouse, 1 x1394 + 4 USB ports, 1 x GbE LAN port.
