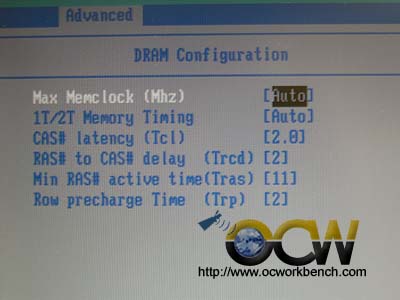

Ram timing adjustments can be set here. Options include 1T/2T timing (1T is faster), Max memclk for ASync DDR 200,266,333 operation to run ram async to cpu clk. CAS Lantecy , tRCD, tRAS, trp can be set. In our set, we set it to CAS 2, 11-2-2 (tRAS=11, tRCD=2, trp=2)

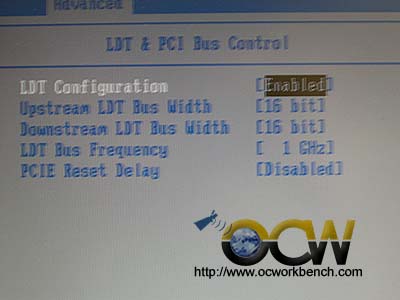

We set the system to run HTT width of 16bits up/down and at a bus frequency of 1GHz.  HT Width 8 or 16 bits (up/down) and HT Speed from 200, 400, 600, 800 and 1GHz.

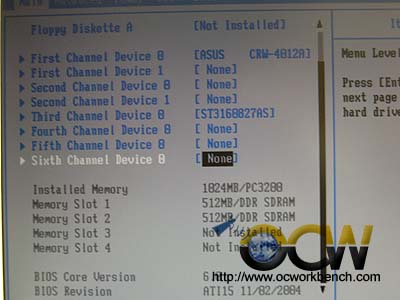

1 pair of 512M of Corsair CMX512-3200XL is used. From the screen, we can see the 2 channels of IDE and 4 channels of SATA is supported.

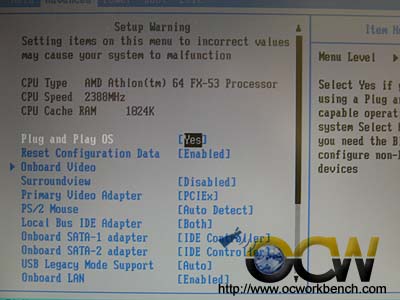

The CPU used is a FX-53 (2.4G). Notice that the CPU speed is 2388MHz as the FSB was fixed at 199.00MHz. There are no options to change the FSB, multiplier, voltages etc.
