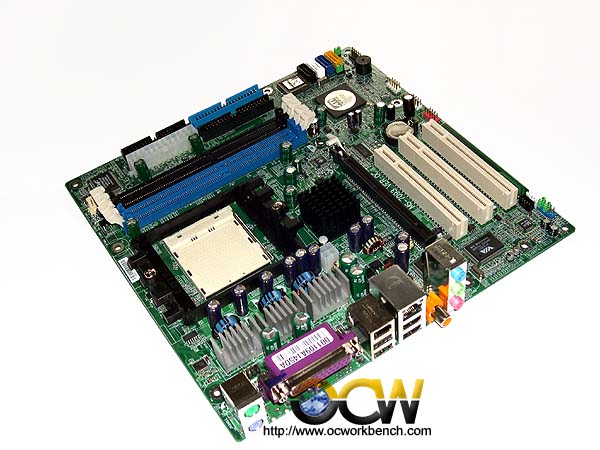

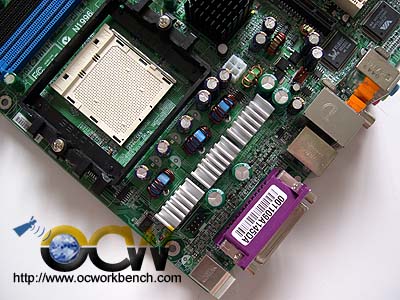

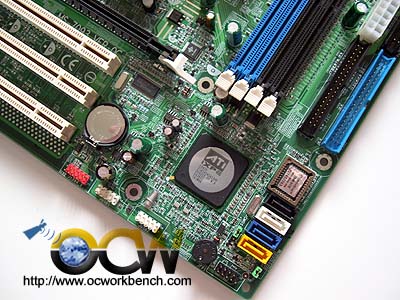

This mainboard is similar to the upcoming MSI RS480M2-IL. The mainboard comes with 3 PCI, 1 PCI-E x 16. At the centre of the mainboard is the North Bridge. Next to it is the Socket 939 where the CPU seats. This board uses a 3 phase design with heatsinks attached to the mosfets.

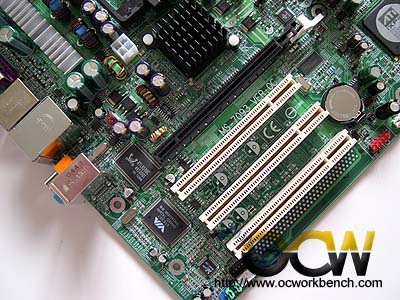

On the top are the supporting chipsets. for Audio it uses Realtek ALC658, 10/100Mbps Ethernet is based on PCI RTL8100C and Firewire uses the VIA VT6307 chipset.

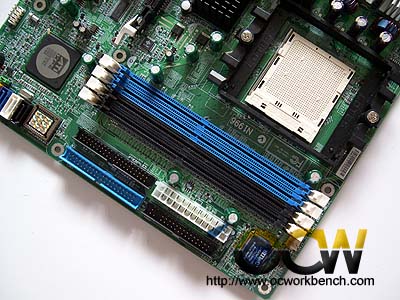

Next to the extreme leftmost PCI slot are the Firewire and USB connector. There are also  4 DIMM slots supporting up to 4GB of Dual Channel. Below it are the IDE and floppy connector. 4 SATA ports can be set up in RAID 0,1 array.

At the back of the mainboard are the PS/2 keyboard, mouse connectors. There is 1 parallel port. 1 Firewire port. 4 USB, 1 Ethernet, 6ch audio ports. 1 x S/PDIF (coax out) header
