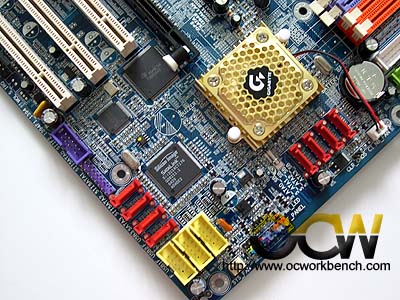

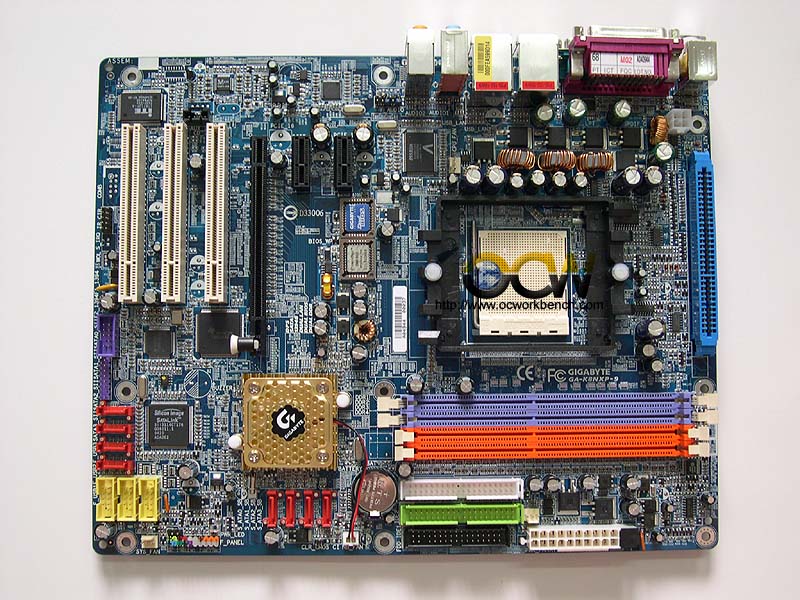

The single chipset mainboard uses an active heatsink to dissipate the heat using a thermal pad. Next to it we can see 4 SATA ports are NCQ enabled and RAID 0,1,0+1 supported by the NVIDIA chipset. The other 4 ports to its left are supported by the SiliconImage 3114 chipset.

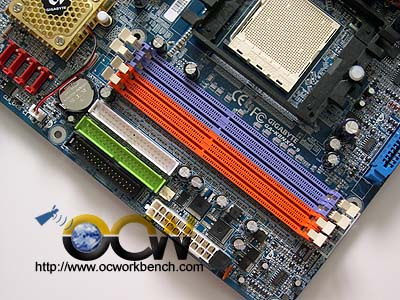

On the right hand bottom corner of the board we see 4 DIMM slots supporting up to 4GB of memory running in Dual Channel DDR400 mode.  On top of it is the infamous Socket 939.

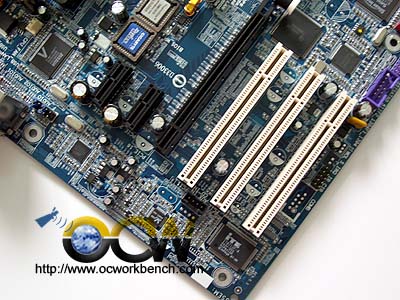

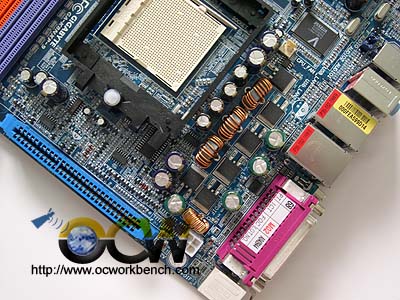

The board also supports 3 PCI slots, 1 PCI-E x16 slot and 2 PCI-Ex1. Dual BIOS is implemented to prevent bad flashes. The board is based on a 3 phase design with separate +12v and ATx connector. The blue slot on the right is the D.P.S. slot.

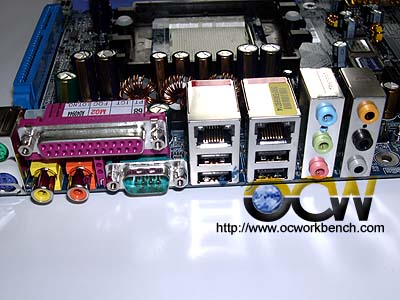

Firewire 1394b is supported by the TI chipset on board. Dual LAN uses PHY from SimplyPhy and Marvell. 8 ch audio is available through the Realtek ALC850 chipset.
