Gigabyte 8GPNXP DUO i915P Express Mainboard (3) Bluetooth 21 June 2004
BIOS

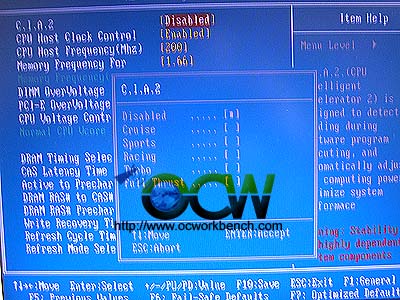

C.I.A.2 comes
with auto overclocking facility which can be set and it auto overclocks
the FSB without user intervention giving you better performance. There are
a few modes which can be set

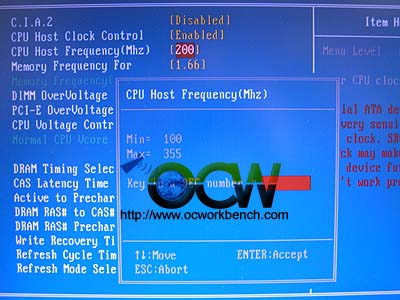

FSB is ranged
from 100 ~ 355MHz FSB. We don't see any FIX PCI/AGP option available. We
do see an option allowing you to run the memory at Async mode.

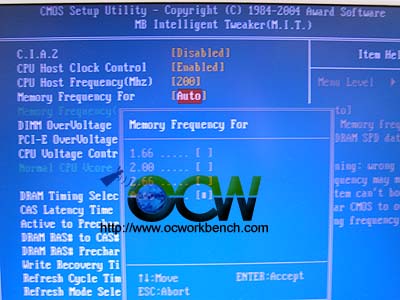

ASync or Sync
memory mode. DDR2-533 is run at 2.66x

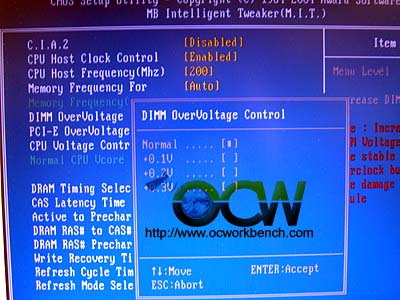

DIMM voltage
can be increased up to +0.3v of default

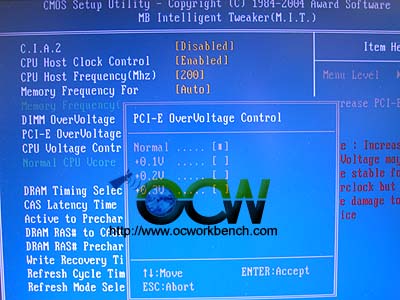

PCI-E voltage
can be adjusted upwards

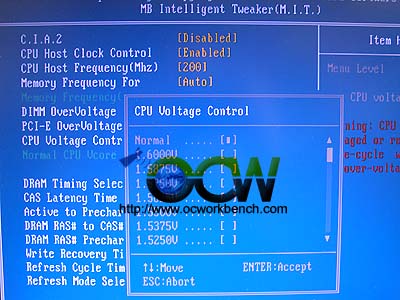

CPU voltage
control be set up to 1.60v.

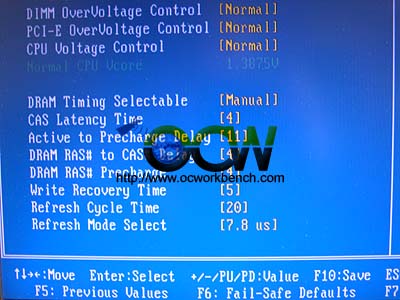

Ram timings
can be adjusted. For our tests, we set our DDR to CAS 2, 6-2-2 and DDR2 to
CAS 3, 11-4-4
