Gigabyte
8TRS300M
ATi R9100IGP Mainboard Gallery (2)
Bluetooth 23 Feb 2004

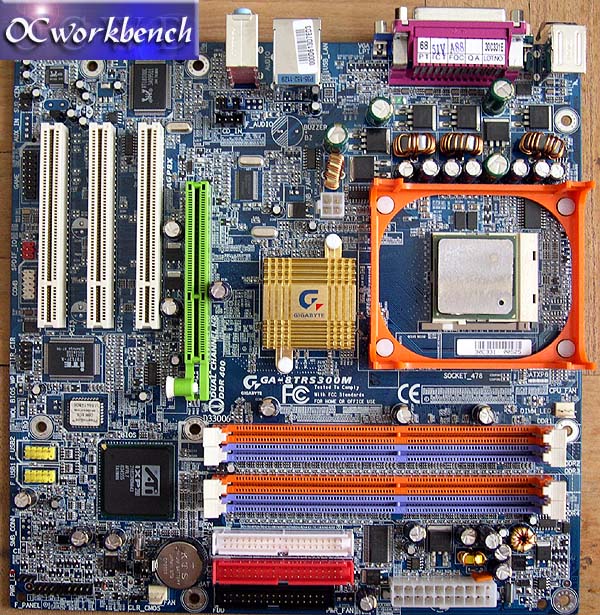

The Mainboard
| |
|
 |
 |
|

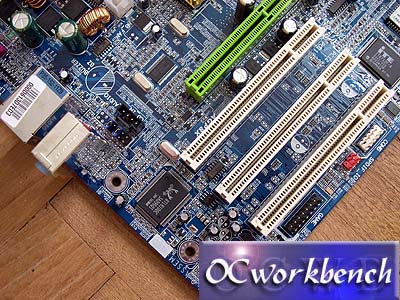

3 PCI and 1 AGP slot. On the side of the board
are game connectors, SPDIF and USB connectors. From the picture, we can also
see the Realtek LAn chip. |

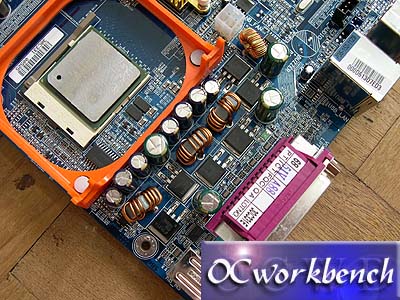

Socket 478 with a 3 phase power voltage
regulator design. |
 |
 |
|

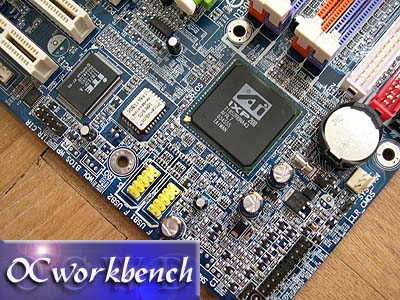

USB connectors for external brackets. The ATI
IXP South Bridge controlling the 2 IDE ports. There is no support of SATA
yet. |

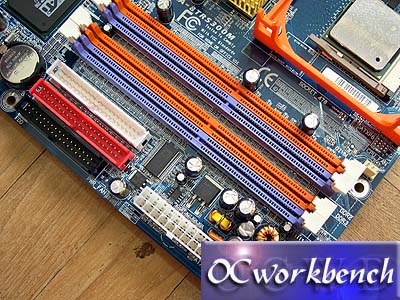

4 DIMM slots supporting up to 4GB of
DDR400/333/266/200 in Dual Memory configuration. |
| |
|
