Foxconn 925A01-8EKRS 925X+ICH6R Socket T Mainboard (1)
Bluetooth 30 June 2004

Foxconn 925A01-EKRS

Foxconn is one of the top tier manufacturer of mainboards. We might be familiar with Foxconn as an OEM manufacturer in the old days. Foxconn has gone one step ahead and deliver retail boards for the Channels market. Today we look at their 925X offering for the Prescott-T LGA775 CPUs.

Foxconn has a nice way of naming their boards, -EKRS means 1394, onboard 1G LAN, RAID, SATA. This new board supports the Intel Prescott-T processor in LGA775 package at 533/800MHz HT. It has 4 DIMM slots supporting DDR2 400/533 RAM up to 4GB of DDR2 memory can be used. It supports PAT.

This board supports up to 8 USB 2.0 ports, 4 SATA devices in RAID 0, 1, 0+1 or MATRIX RAID configurations.

-L with onboard 100M LAN
-G with onboard Gigabit LAN
-6 with 6 channel audio
-8 with 8 channel audio
-E with 1394
-S with SATA
-R with RAID

Package

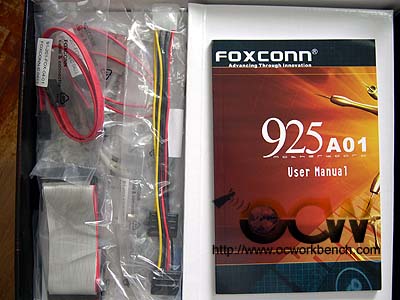

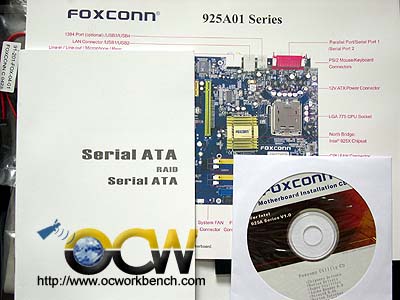

The package comes standard with the cables, manuals, CDROM, USB bracket, S/PDIF out.

Specifications

	925A01-8EKRS
Processor
Intel® Pentium® 4, Socket 775, 800MHz FSB Fully supports Intel "Prescott" processors Intel Hyper-Threading Technology supported	X
Chipset
Intel® 925X + ICH6R	X
Memory
Dual channel, unbuffered, 1.8V DDR2-400/533 w/ or w/o ECC; (4) 240-pin DIMM sockets, max 4GB Supports Intel Performance Acceleration Technology (PAT)	X
Graphics
Discrete (non-integrated) - use expansion slot	X
Expansion Slots
1 x PCI Express x16, 3 x PCI Express x1, 2 x PCI	X
IDE
1 x ATA/100 + 4 x SATA/150 (w/ RAID)	X
Audio
Integrated, 7.1 channel High Definition, including front audio and S/PDIF headers (Realtek)	X
LAN
Integrated Gigabit Ethernet (10/100/1000) controller (Realtek)	X
IEEE-1394
Integrated (VIA), 1 x rear + 1 x front I/O header	X
RearPanel
1 x PS/2 keyboard 1 x PS/2 mouse 1 x RJ45 (LAN) 4 x USB 2.0 1 x line-in/line-out/mic (audio) Additional line-out for 7.1 channel Intel High Definition audio 1 x parallel (SPP/ECP/EPP) 2 x COM (16550-compatible UART) 1 x IEEE-1394	X
Internal
1 x floppy disk drive 2 x USB 2.0 headers (supports 4 ports) 1 x IEEE-1394 header Front audio header	X
BIOS
4Mb flash EEPROM w/ LAN boot, PnP, ACPI, WfM, DMI 2.0,	X
Features
Wake-on-LAN (WOL), suspend-to-RAM (STR), suspend-to-disk (STD), SuperUtilities - SuperBoot, SuperBIOS-Protect, SuperRecovery, SuperSpeed, SuperStep, SuperLogo, and SuperUpdate	X
Accessories
Support CD, user manual, 1 x floppy drive cable, 1 x ATA/100 cable, 4 x SATA data cables, 2 x SATA power cables (supports 4 drives), rear I/O shield, RAID driver floppy disk	X
FormFactor
ATX, 12.0" x 9.6" or less - see User Manual	X
