EPoX 8KDA3+
nForce3-250Gb Socket 754 Mainboard Gallery (2)
Bluetooth 4 May 2004

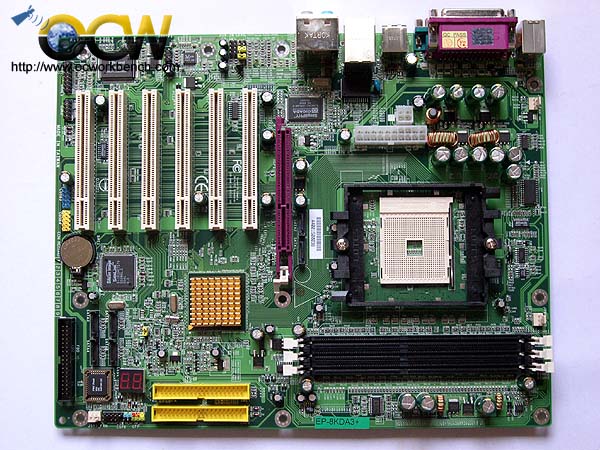

The Mainboard
We took noticed of the power regulator and it
seems to be using a 2 phase design. There are 6 SATA ports on this mainboard and
the 2 that is supported by the NF3-250Gb lies next to the AGP slot which somehow
in an awkward position because the cables might be blocked the the VGA card or a
large CPU heatsink.

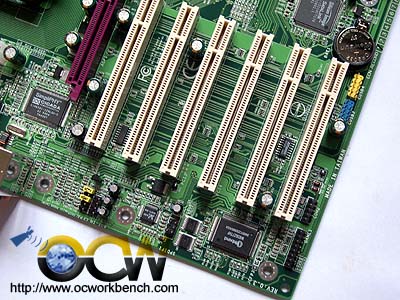

We have 6 PCI
slots, 1 AGP slot. ALC850 codec is used.8
channel Onboard sound from Realtek ALC850 Audio with Digital SPDIF and
Automatic Jack Sensing feature (8KDA3+ adds optical output).
Onboard
Winbond W83627THF LPC I/O controller

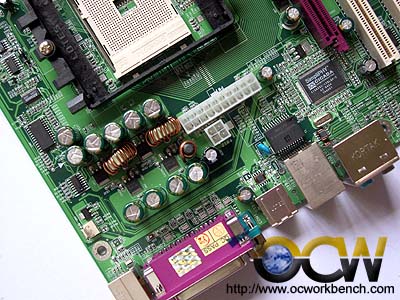

Looks like a
2 Phase design is in place. Next to it is the +12v connector.

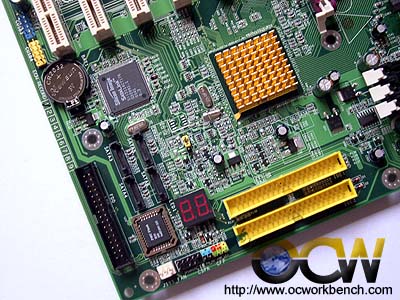

Floppy
Connector, BIOS chip, colour front panel connector. 4 SATA RAID 0/1/10/5 Ports and
2 PATA ports. The 2 PATA + 2 SATA (supported by NF3-250Gb) can be mixed to
form a RAID array.

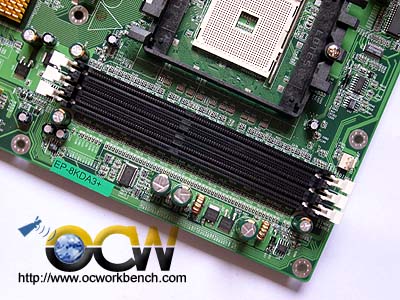

3 DDR SDRAM
banks for Maximum 3 GB memory DDR333/400

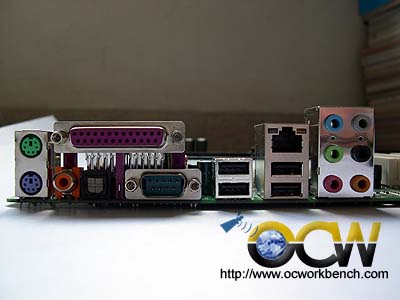

The back
panel with PS/2 Keyboard, Mouse connector. 1 COM port. 1 Parallel port. 4
USB, 1 LAN and 8 channel audio ports. Optical + Coaxial out.
