ECS KV2 Extreme Socket
939 (K8T800Pro) Gallery/Preview
(2) Bluetooth 2 Feb 2004
The Mainboard

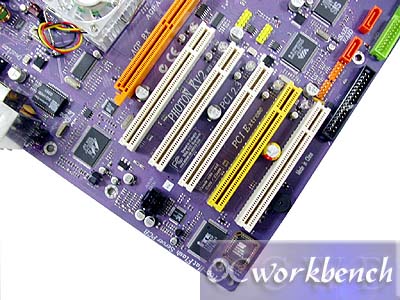

5 PCI slots,
1 AGP 8x . The PCI slot in yellow is a special PCI slot for sound cards
for better sound. On the mainboard is the audio codec Realtek ALC655 and
there is the Marvell Gigabit Ethernet chipset.

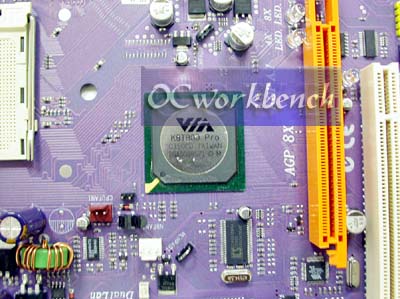

The Socket
939 and the North Bridge. A 3 phase design with +12v connector is used.

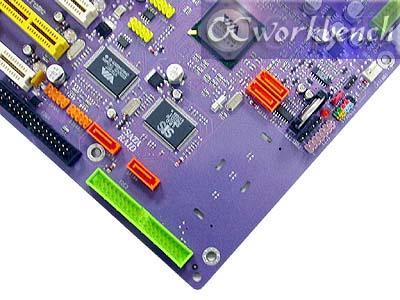

SATA / IDE ports supported
by VT8237
-4 x Ultra DMA133/100/66 devices
-2 x SATA devices SiS180
-2 x Ultra DMA133/100/66 devices
-2 x SATA devices
RAID0, RAID1& RAID 0+1 configuration
Floppy connector, front
panel connector, USB connectors. IDe channel 3 (by SIS 180)
Power

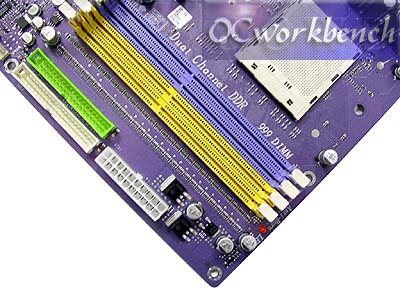

connector, IDE channels (1&2) by 8237. Dual channel DDR400 DIMM Slots.

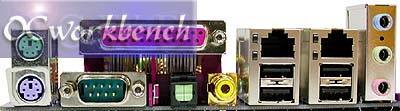

REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse
connectors
4 x USB ports
2 x RJ45 LAN connectors
1 x Parallel port (LPT1)
1 x Serial port (COM1)
2 x Digital SPDIF (Optical & Coaxial)
out
1 x Audio port (Line-in, Line-out, Mic-in)

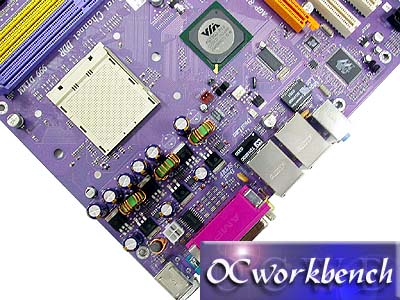

The VIA
K8T800Pro North Bridge which supports 4 DIMMs of DDR400 supporting Dual
Channel DDR400 mode.
