DFI Lanparty UT nF3-250Gb
Socket 754 Gallery 5/5 Bluetooth 12 Sep 2004
BIOS (3)

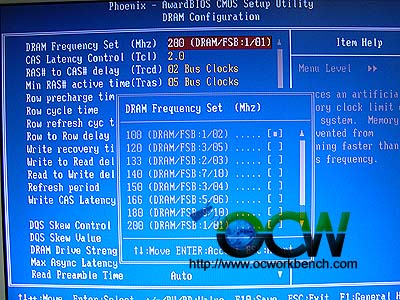

In DRAM
configuration, you can customise the ram timings, async settings etc. In
this screen we set it to 200 that means we run CPU:FSB=1:1. You can run it
at Async mode when overclocking your FSB but want to run your memory at a
ratio of that. This is important if you do not have DDR600 to run 1:1 but
you can still run your DDR400 at around 400+ but your CPU is at a FSB of
300.

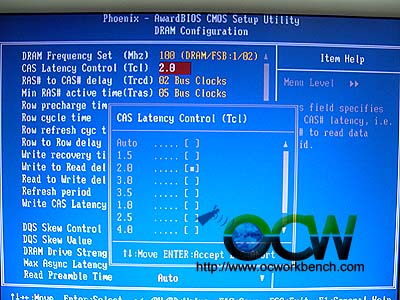

Tcl or CAS
Latency. we ran our test system at CAS 2 for both normal and overclocking
test. I am not sure if CAS 1.5 will really help. I haven't seen any CAS
1.5 RAM in the market :)

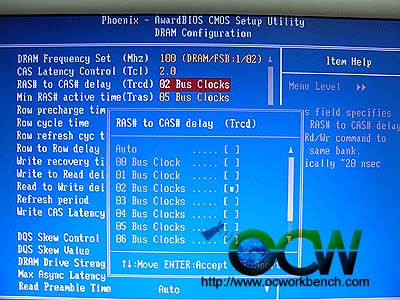

RAS# to CAS#
delay, we set it to 2

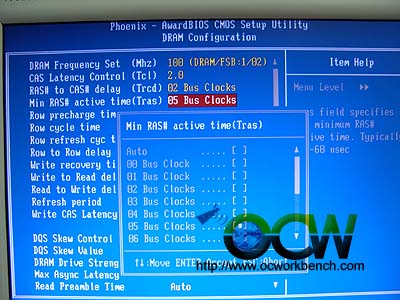

Min RAS# active time, we set it to 5 in our
tests.

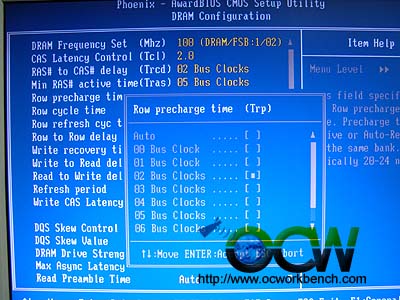

Tcp, we set it to 2

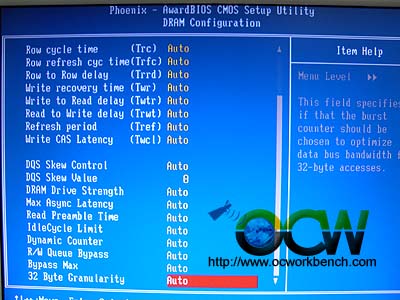

Scrolling down, there are
more options in the DRAM Configuration. We found out that just by setting
the RAM timings will not maximise performance. We will tell you more on
how to tune your performance in the next few pages.
