DFI Lanparty UT nF3-250Gb Socket 754 Gallery 2/5
Bluetooth 12 Sep 2004

Gallery

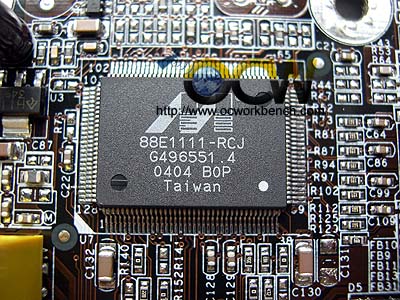

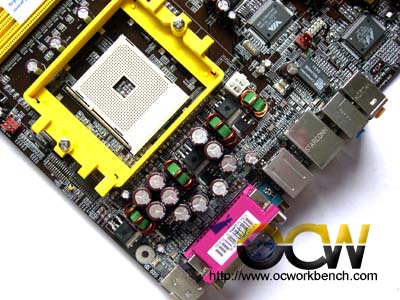

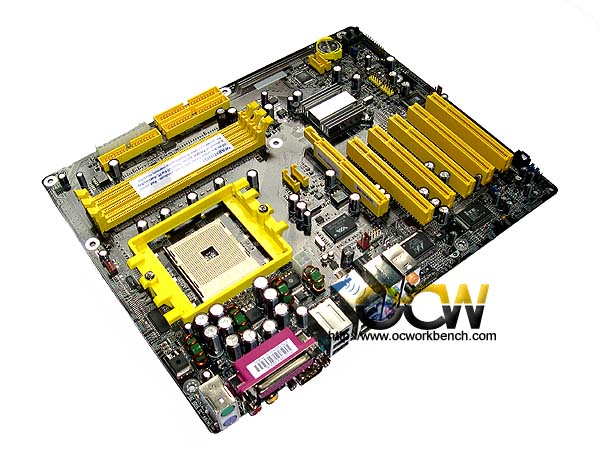

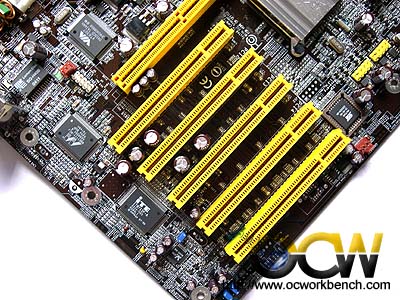

As we can see from the mainboard, the board has bright yellow UV connectors. It definitely looks beautiful under UV lighting. This mainboard supports 5 PCI and 1 AGP 8x slot. We can see 2 SATA connectors at the centre of the board and next to it is the Socket 754 for the Athlon 64 CPU. On the board we can see the Realtek ALC850 8 ch audio chipset, VIA chipset VT6307 for firewire, marvell Gigabit Ethernet MAC. On the right is a +12v powre connector and we see the coils and group of capacitors on the right rear of the board.

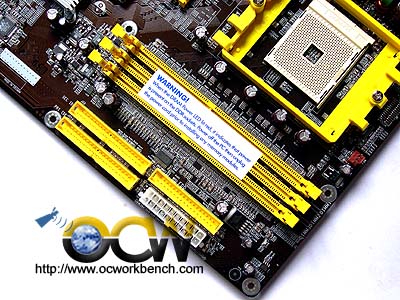

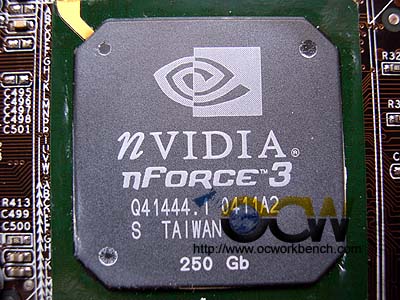

The board has a single chipset and the passive heatsink is somewhat hot. It would definitely be better if an active cooling be used to replace that. On the right we see 3 DIMM slots supporting up to 3GB of DDR400.

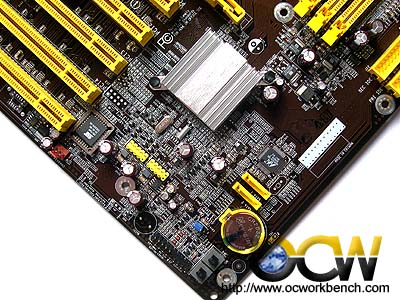

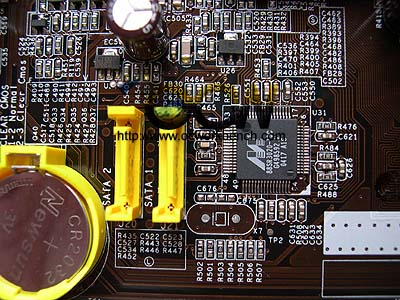

Right below at the left corner we see the Power Button and Reset Switch. This is especially useful for overclockers as you wouldn't need to short power pins or reset pins using a safety pin. Next to the CMOS Battery we see 2 SATA ports  supported by the Marvell chipset.

To the right, we see 2 IDE connectors and 1 floppy connector. The power connector is right below the floppy connector.
