Chaintech ZNF3-250 nVIDIA NF3-250 Mainboard Preview/Gallery (1)
Bluetooth 16 Mar 2004

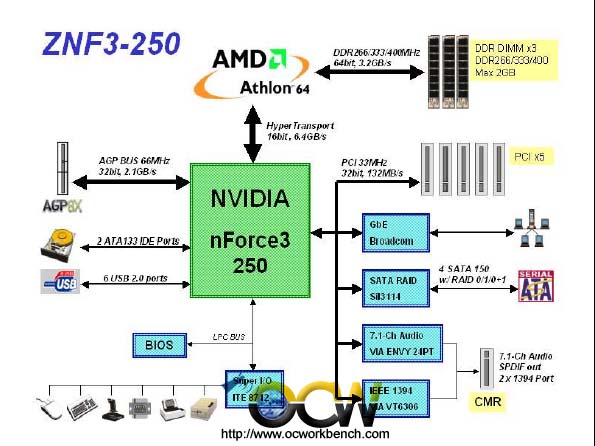

Chaintech Computer Co., LTD, the leading motherboards and graphic cards manufacturer, is proud to introduce the newest model, ZNF3-250 motherboard, which will support AMD socket 754 Athlon 64 processor. It designed with NVIDIA’s newest nForce3-250 chipset (combines the north bridge and south bridge). ZNF3-250 will allow users to insert three 184-pin DDR DIMM (DDR266/333/400). The maximum RAM capacity is 2 GB. AMD’s Hyper Transport technology also increases the transition rate to 6.4 GB/s between North Bridge and CPU.



RadEX, the Revolutionary Active Direct Exhaust, is the first application of Heat pipe Technology ever implemented on a motherboard world. Unlike other motherboard manufactures, we cool the system directly and actively. When the temperature rises, RadEX takes the heat out of the system in a flash. The dissipation rate is 100 times faster than Copper heatsink and 200 times faster than Aluminum heatsink. RadEX connects to the hottest parts, and will actively take the heat out from the part. There has no heat will diffuse in the system. Thus, the motherboard and the system can remain cool. Even when it gets overclocked, it will be as stable as the default setting.

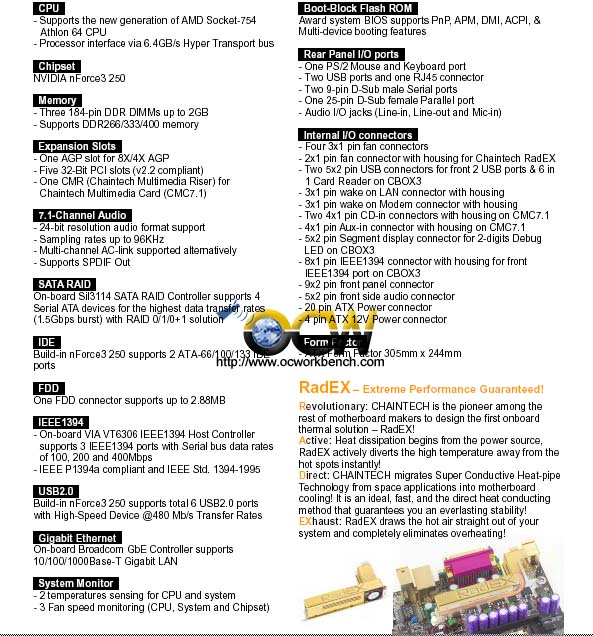

ZNF3-250 special features one CMR (Chaintech Multimedia Riser) for Chaintech Multimedia Card (CMC7.1). 7.1-Channel Audio and supports S/PDIF output. On-board SATA RAID Controller supports 4 Serial ATA devices for the highest data transfer rates (1.5Gbps burst) with RAID 0/1/0+1 solution .On-board VIA VT6306 IEEE1394 Host Controller supports 3 IEEE1394 ports with Serial bus data rates of 100, 200 and 400Mbps. There are 2 temperatures sensing for CPU and system, also 3 Fan speed monitoring (CPU, System and Chipset). All the accessories included CBOX3(combine with IEEE1394/USB/audio ports/80 digi doc/6-in-one readers:SM/MS/CF/MMC/SDC/MD))、CMC with 7.1-Channel、Norton AntiVirus、ProMagic 、Image It、Round Cable.
