ASUS A8V Deluxe Socket 939 VIA K8T800Pro Mainboard Review (1)
Bluetooth 12 July 2004



ASUS A8V Deluxe

ASUS A8V Deluxe can be said to the Socket 939 edition of the famous K8V that is well discussed in worldwide forums. A8V Deluxe Supports AMD Socket 939 Athlon 64FX/Athlon 64
This motherboard supports AMD 939-pin Athlon 64 FX/ Athlon 64 processors with 1MB/512KB L2 cache which is based on 64-bit architecture. It features 2000 MT/s HyperTransport Bus, dual-channel un-buffered DDR400 memory support and AMD Cool 'n' Quiet! Technology.

This mainboard uses the new VIA K8T800Pro which incorporates two Serial ATA connectors with RAID 0(striping), RAID 1(mirroring), and JBOD(spanning) functions while the Promise 20378 controller provides another two Serial ATA and two UltraATA133 connectors for RAID 0(striping), RAID 1(mirroring), RAID 0+1, and multiple RAID functions.

On top of that it supports 1394, GbLAN through the Marvell controller. 8 channel audio is also available on board and AI Audio automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection. There are also three Universal Audio Jack (UAJŪ), which eliminates cable connection errors and confusion among Line-in, Line-out and Mic jacks. With the bundled WinDVD Platinum 5, A8V Deluxe supports 7.1-channel output, making your movie-watching experience truly a blast!


Package

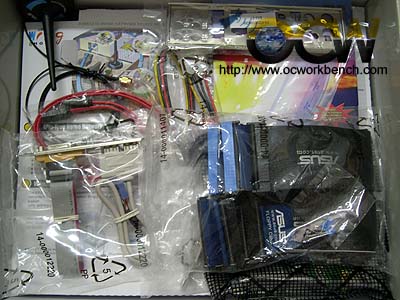

The package comes standard with the cables, manuals, CDROM, USB bracket and wireless AP.



Specifications

Supports AMD Socket 939 Athlon 64FX/Athlon 64
This motherboard supports AMD 939-pin Athlon 64 FX/ Athlon 64 processors with 1MB/512KB L2 cache which is based on 64-bit architecture. It features 2000 MT/s HyperTransport Bus, dual-channel un-buffered DDR400 memory support and AMD Cool 'n' Quiet! Technology.

AMD Cool 'n' Quiet! Technology
Supports AMD Cool 'n' Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment.


Dual RAID

The VIA K8T800Pro chipset incorporated two Serial ATA connectors with RAID 0(striping), RAID 1(mirroring), and JBOD(spanning) functions while the Promise 20378 controller provides another two Serial ATA and two UltraATA133 connectors for RAID 0(striping), RAID 1(mirroring), RAID 0+1, and multiple RAID functions. The motherboard is the ideal solution to enhance hard disk performance and security.


IEEE 1394 interface
IEEE 1394 interface provides high speed digital interface for audio / video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.

AI NET (GbLAN)
The AI Series supports Gigabit LAN by integrating the Marvell controller, equipped with a unique net-diagnosing utility- VCT (Virtual Cable Tester). The controller intelligently detects net connection status up to 100 meters from a remote location and reports the distance of bad cable.

AI AUDIO (8-channel digital audio)
A8V Deluxe supports eight channels of audio output. AI Audio automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection. There are also three Universal Audio Jack (UAJŪ), which eliminates cable connection errors and confusion among Line-in, Line-out and Mic jacks. With the bundled WinDVD Platinum 5, A8V Deluxe supports 7.1-channel output, making your movie-watching experience truly a blast!


AI Overclocking
A unique option in BIOS that enables quick overclocking up to 30% (depends on CPU and RAM). It automatically detects and optimizes every relevant parameter to provide both performance and stability.

The BIOS in AI Series also keeps all the special design for overclocking:
-- Flexible CPU Core Voltage Adjustments in 0.025V increments over defaults
-- SFS (Stepless Frequency Selection) up to 400MHz at 1MHz increanerts
-- ASUS C.P.R.(CPU Parameter Recall)

AI BIOS
CrashFree BIOS 2~
Whenever BIOS gets corrupted, ASUS CrashFree BIOS 2 allows users to reboot the computer and perform an smart auto-recovery procedure through the motherboard support CD.

Q-Fan 2~
This unique technology intelligently and automatically adjusts CPU/Chassis fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.

ASUS POST Reporter~
A voice warning design during POST notifies users of any system errors, which means no more complicated LED messages!

Coaxial/Optical S/PDIF out ports on back I/O
This motherboard provides convenient connectivity to external home theater audio systems via an optical or coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.


Instant music
Through this unigure feature, ASUS motherboard are conveniently designed to allow users to enjoy their favorite music, without the need to enter Windows.


ASUS MyLogo2
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

Multi-language BIOS
ASUS provides friendly localized BIOS setup menu to help you configure your system as easy as possible.

ASUS EZ Flash
With ASUS EZ Flash, you can update BIOS directly from the BIOS setup menu. No more DOS-based flash utility and bootable diskette required
