Gallery

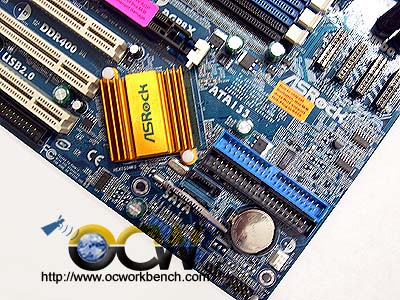

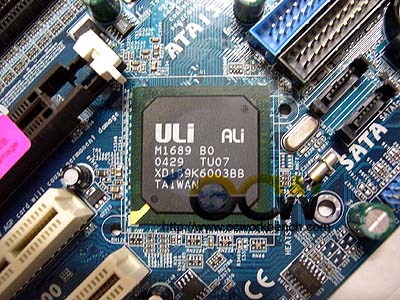

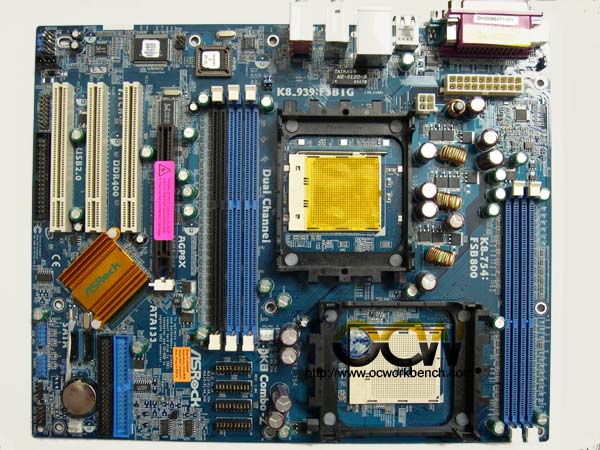

The single chipset mainboard uses a normal chipset heatsink to dissipate the heat. Next to it are 2 SATA ports and 2 IDE ports both supported by the chipset. Towards the centre of the board, we see sets of jumpers that are needed to be set for Socket 754 or Socket 939 support. There are altogether 7 sets of jumpers JP 1 to 7 located scattered on the board. Further to the right is the Socket 754 and the supporting 2 DIMM slots.

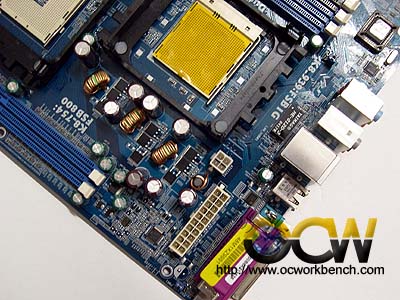

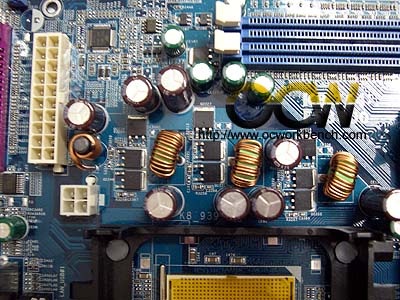

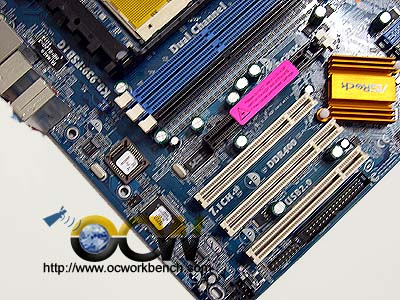

On the top corner of the board, there is the floppy connector, 3 PCI and 1 AGP 8x Slot. Next to it is the Blue+Black 3 DIMM slots for Dual Memory support for the Socket 939. The Socket 939 socket is at the centre of the board. Next to it is the power connectors with a 3 phase power implementation.

The Realtek ALC 850 audio codec used supports 7.1 audio can be found at the top left corner of the board.
