ASrock K7S41 SiS 741 K7 Preview / Gallery (2)

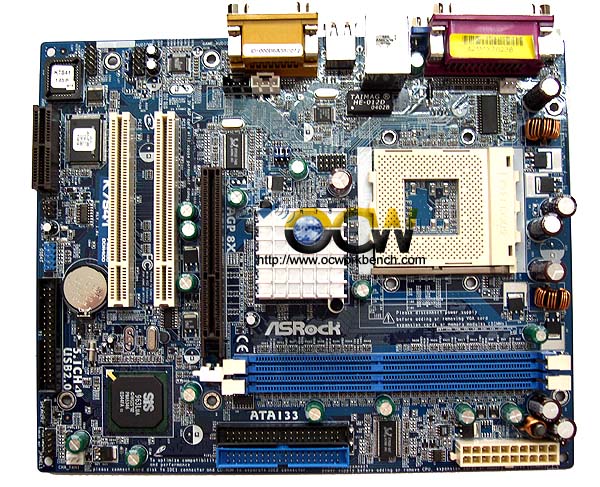

Finished in blue, this MicroATX looks cool inside cases. Although it is a MicroATX mainboard which only has 2 PCI slots and 1 AGP slot, 1 AMR, it is surprisingly that this board comes with a multiplier (jumper) control and there is voltage adjustments for Vcore and Vdimm inside the BIOS. The board comes with a silvered colour heatsink for the SiS 741 chipset .

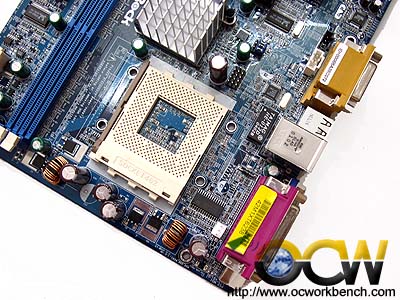

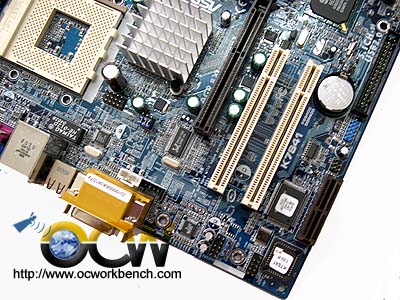

2 PCI slots, 1 AGP 8x Slot, 1 AMR slot. On the mainboard is the audio codec CMedia 9739A	2 DIMM slots supporting up to 2GB of DDR400. Socket A. This board uses a 2 phase regulator. It might be a good idea to use a better PSU.

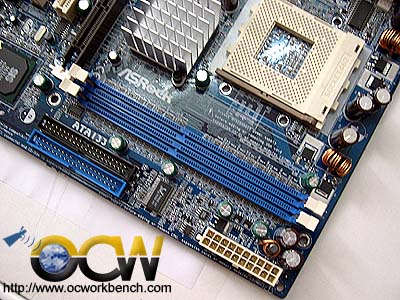

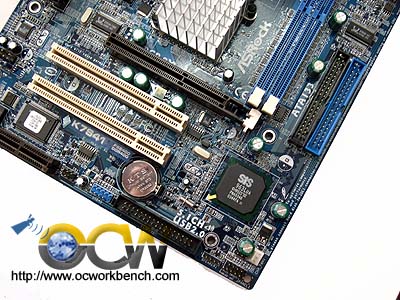

Floppy Connector, SiS 963L South Bridge.	The power connector connectors with 2 channels of IDE. There is no +12v connector..

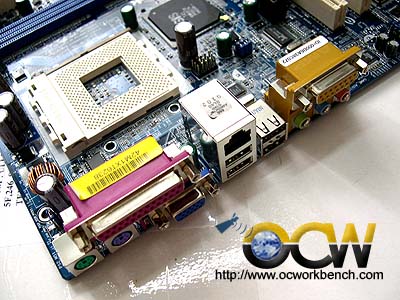

The back panel with PS/2 Keyboard,Mouse connector. 1 COM port. 1 Parallel port. 4 USB, 1 Ethernet 10/100Mbps LAN and 5.1 channel audio ports.	The ClkGen responsible for the large range of FSB to 248MHz

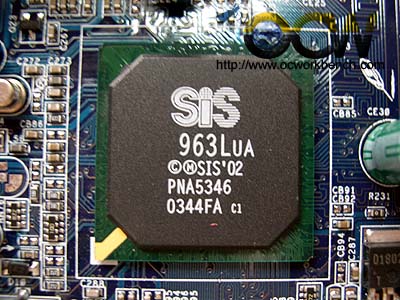

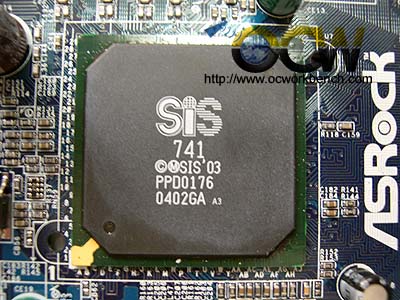

SiS 741 North Bridge with Integrated Real256 Video	SiS 963L South Bridge. No SATA support
