Tyan Tachyon G9700 Pro Gallery (2)
Overclocker 15 Apr 2003

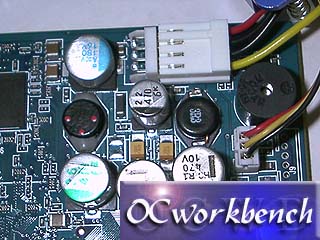

The power extension cord needs to be plugged into the
socket to power up the Radeon 9700Pro card.

There is a SW2 on the graphics card which allows you to manually set the card to 4X or 8X mode. According to Tyan representative, this is implemented for
mainboards with BIOS that can't provide provide 8X AGP mode.

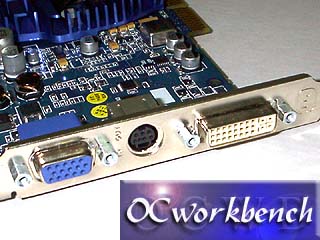

VGA , S-Video , DVI-I output ports

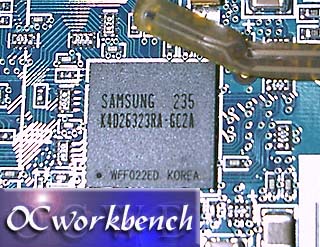

Samsung 4Mx32 2.8ns DDR memory is used on board.
2.8ns has a potential speed of 350Mhz (700Mhz DDR).
You can see a heat censor that is close to the RAM which can be used
to monitor the temperature of the card.

Benchmarks
