Tyan Tachyon G9700 Pro (4)
Overclocker 15 Apr 2003

Benchmarking

We conduct the a number of tests on the setup with the following configuration :

Test System:

• Intel Pentium 4 2.8
• Shuttle AS45GTR SiS 648 mainboard running DDR333 Async mode CAS 2, 2-2-5
• Maxtor D740X-6L ATA133 7200RPM
• AOPEN 40X CDROM
• Tyan G9700pro ATi drivers 6.13.1.6143
• Chaintech GF4 Ti4600 w/ Detonator 40.41
• Corsair 512MB XMS3200 DDR400 module
• Channelwell 375W AMD Approved PSU

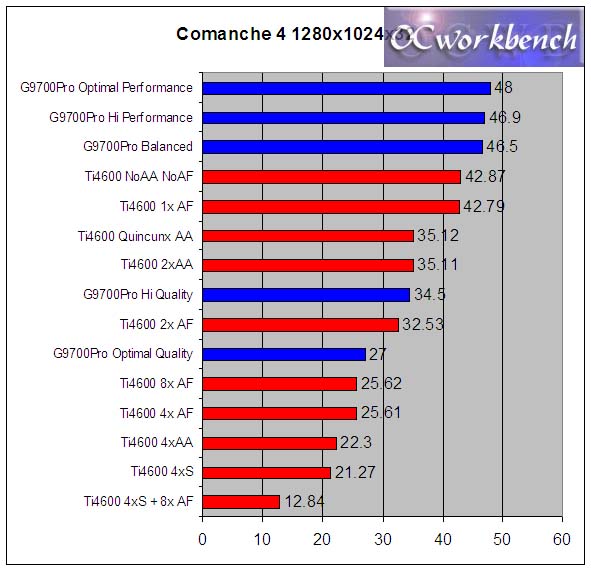

Comanche 4 1280x1024x32 Anti Aliasing and Anisotrophic Filtering

This is a new benchmark that we adopt in our test of graphics card. Comanche 4 is a demanding application and is excellent for testing D3D. In the comparison we have to take note of the various settings on G9700pro and Ti4600. On Ti4600, the det 40.41 also has AF settings.

In our benchmarks, we set it to the 5 Main settings, Optimal Performance, Hi Perofrmance, Balanced, Hi Quality, Optimal Quality. Do take note the various combinations of AA and AF when the above are selected.

Optimal Quality = 4X AA + 16X AF
High Quality = 2X AA + 8X AF
Balanced = Application Specific
High Performance = Application Specific + Texture Pref  3 + MipMap Level 3
Optimal Performance = Application Specific + Texture Pref  2 + MipMap Level 2
