SOYO K8USA Dragon Ultra Athlon 64 ALi M1687 Mainboard Gallery (4)
Ken C 2 Dec 2003

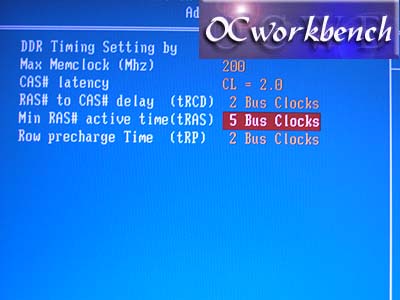

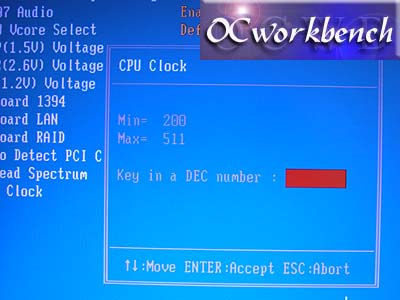

SOYO K8USA Dragon Ultra has an amazing BIOS. This is the most amazing CPU Clock range I have ever seen. Whether it could be used, it is up to you how far you can push your CPU.	DDR timings setting can be set to Auto or Manual. In our tests, we set Max Memclock to run in Sync with CPU clk (200). Other than that, we set the common ram timings to one of the most aggressive at CAS 2, 5-2-2 (tRAS, tRCD, tRP)

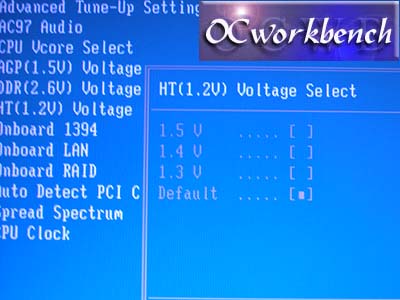

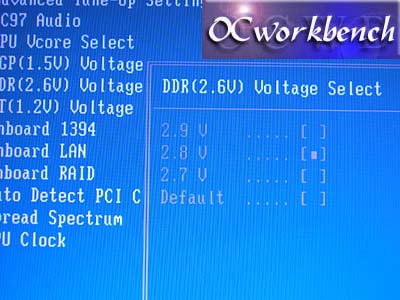

HT can be set to 1.3 ~ 1.5v for overclocking	DDR Voltage can be set and in our tests, we set it to 2.7v. Its default is 2.6v

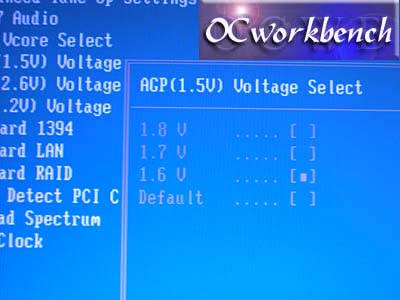

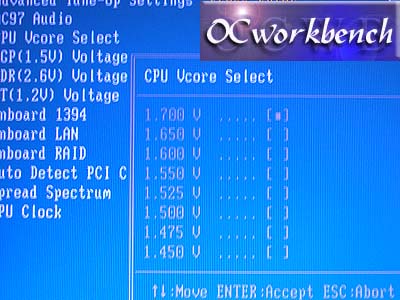

AGP Voltage can be set as well. You can set up to 1.8v	CPU Vcore Voltage can be adjusted up to 1.700v at 0.05v interval.

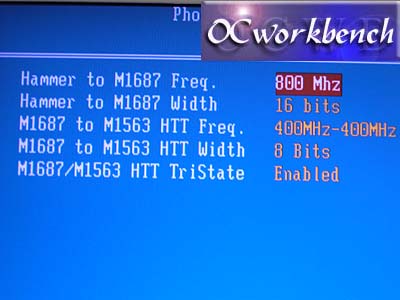

Here are the default settings for the chipset at 16 bits/800Mhz
