SOYO K8USA Dragon Ultra Athlon 64 ALi M1687 Mainboard Gallery (2)
Ken C 2 Dec 2003

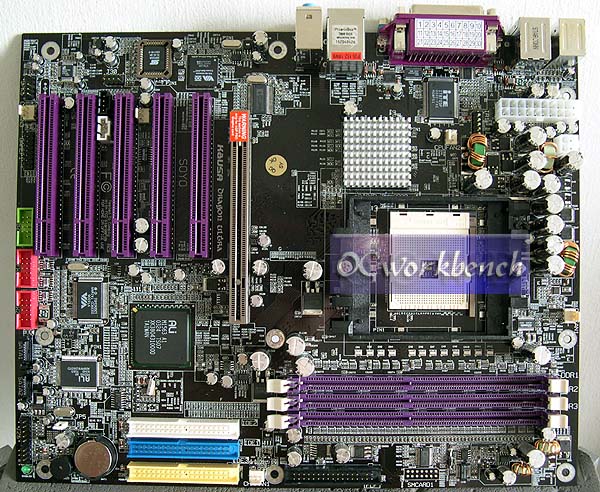

The Mainboard

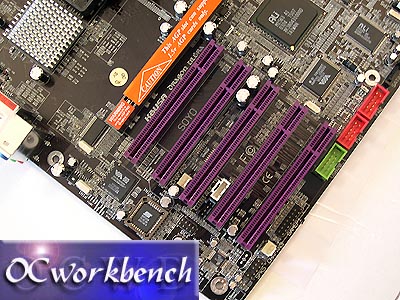

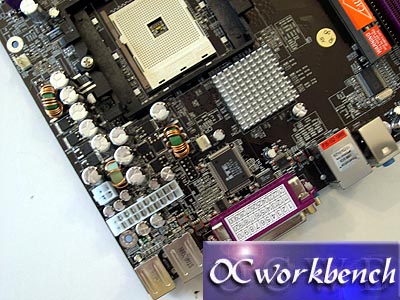

5 PCI Slot, 1 AGP Pro 8x Slot. VIA Gigabit Ethernet chip. Cmedia 9739 6 ch audio chip	+12v power connector and the Socket 754.

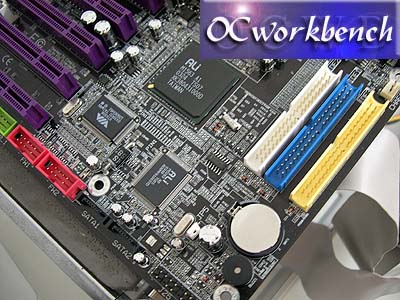

The ALi M5283 SATA/PATA RAID controller supports up to 2 UDMA 150 hard disk (SATA) in Raid 0 or 1 mode. It salso supports up to 2 x UDMA 33/66/100/133 PATA devices in normal or RAID (0 or 1) mode. The ALi M1563 South Bridge supports up to 4 x UDMA 33/66/100/133 Parallel ATA devices. If you hook up everything, this board can support up to 2 SATA and 6 PATA HDDs.	3 DIMMs slot supporting up to 3GB of DDR400.

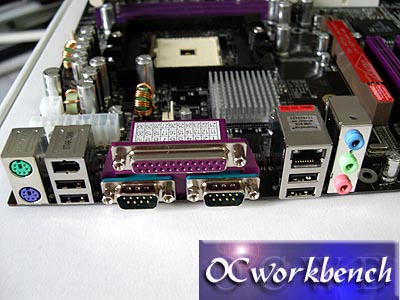

The Back panel of the mainboard.- PS/2 Keyboard & Mouse ports. Parallel and Com ports. 4 USB, 1 x 1394, 1 x Gigabit Ethernet and the audio ports.
