SiS 755 Athlon 64 Socket 754 Mainboard Gallery (4)
Bluetooth 20 Oct 2003

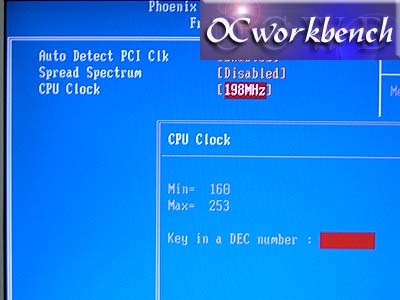

FSB is selectable from 160 to 253MHz. We noticed that when we set to 200, it shows 202 in CPU-Z. The corresponding FSB were 200->202, 199->201, 198->199.9. In our test, we set the board to 198MHz. According to SiS, PCI/AGP is always fixed at 33/66.

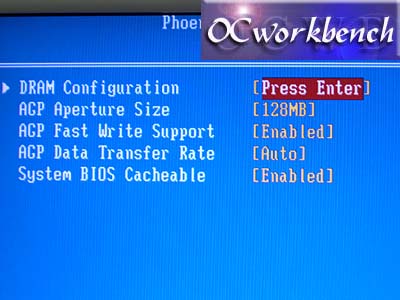

We enabled Fast write and System BIOS cacheable. AGP Aperture Size set to 128MB.

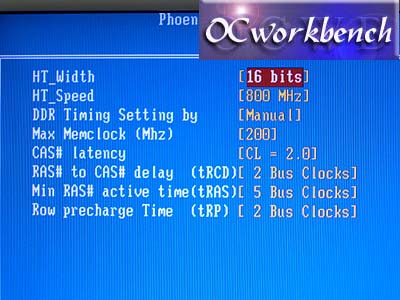

In Advanced Chipset, some of the important options are the CAS Latency, RAS to CAS, Min RAS Active time, Row Precharge time. HT-Width is set to 16 bits, HT-Speed to 800Mhz. Max Memclk can be set to 100,133,166,200 for Async operation.
