ASUS P4C800 i875 Canterwood Mainboard Gallery (3) Bluetooth 14 Apr 2003

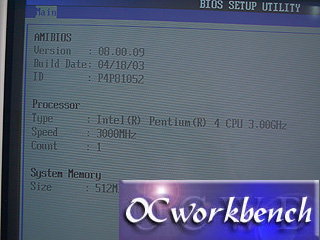

AMI BIOS version : 08.00.09
dated 4/18/2003.
CPU FSB/Speed allows you to
set the FSB your system will run at after reboot. The range is from 100 ~
400 at 1Mhz stepping. AGP/PCI can be fixed. CPU, DDR and AGP voltages are

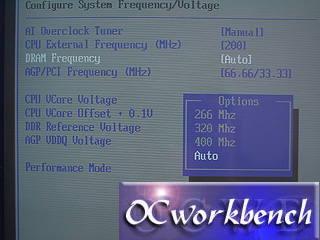

adjustable. In our test, we set performance mode to Turbo. There are only
3 options for cpu:mem ratios and they are 266, 320 and 400. (as shown in
the screen above).

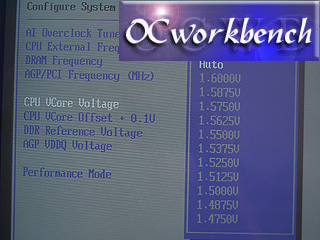

CPU Vcore
voltages can be set from the menu above.

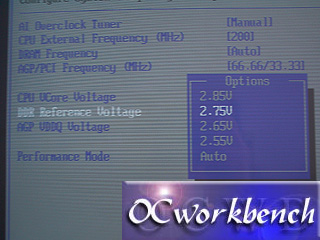

DDR Voltages
are selectable up to 2.85v

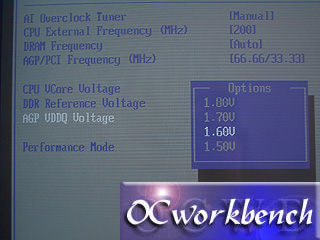

AGP voltage can be set up to 1.80v
We set our ram
settings to 2-5-2-2. Burst Length 8 clks. The only change we made is that we set AGP Aperture size to
128M.
