Gigabyte SINXP1394 SiS655 Dual Channel DDR Mainboard Gallery (4)
Overclocker 16 Jan 2002

The BIOS version M04 dated 12 Jan 2003

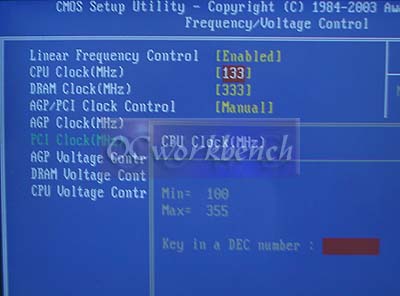

FSB can be tuned from 100 to 355 at 1mhz stepping. You can also adjust the FSB within Windows using EasyTune 4. In this screen, you can also fix the PCI/AGP to 33/66 to run independently of the FSB.

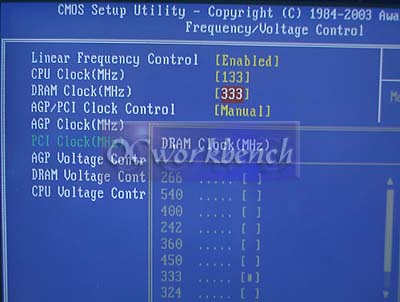

There are multiple DRAM Clk which is this case, you can run your memory at Async memory settings. e.g. CPU at 133, memory at DDR333, DDR360 etc.

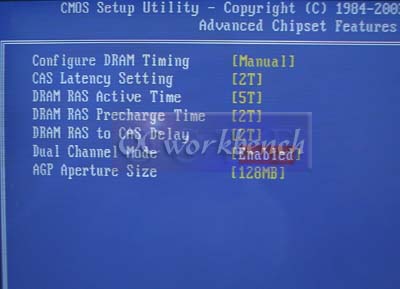

DRAM timings can be set to an aggressive CAS 2, 5-2-2. AGP Aperture size = 128M.

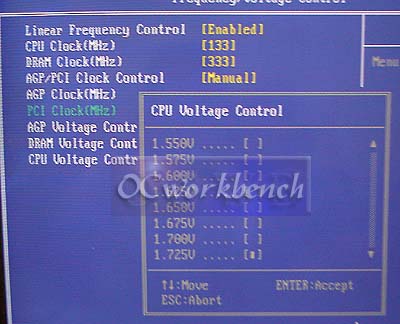

CPU Voltage are selectable within the range of 1.550v to 1.725v at 0.025v interval. For DRAM and AGP voltage, there is only DEFAULT and +0.1V

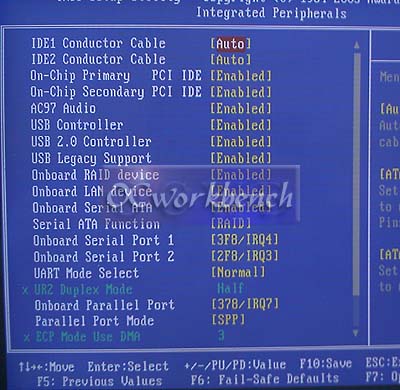

Here is a list of options for turning on the various functions of the board. e.g. on board RAID, LAN, Serial ATA, AC97 audio, etc.
